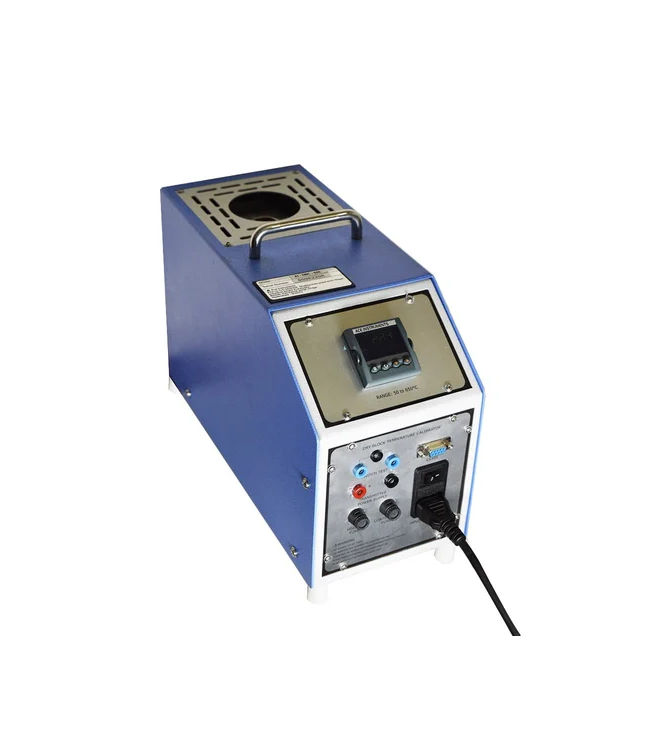

R&D Instruments 650 ATC L Dry Block Temperature Calibrator (50 ~ 650°C)

Range: 50 to 650°C

Accuracy: ±0.3°C@ 50°C, ±0.6°C@650°C

Bath Stability: ±0.1°C

Block Diameter:  36.0 mm

Heating Time:  50 to 650°C (40 to 45 Min)

Cooling Time:  650 to 100°C ( 65 to 70 Min)

Resolution : 0.1°C

Block Depth : 120 mm

Insertion Tube Depth : 110 mm

Dimension (WxHxD) : 155x240x400 mm

Weight : 8.5 Kgs approx.

Units : °C / °F Switchable

Display : LED Green

Power Supply : 230V AC ± 5% / 50Hz, 1.2 KW

Transmitter Supply : Between 12 to 24VDC

Radial Uniformity : ±0.3°C with similar probes

Switch Test : 5V DC nominal through LED Indication
