REFRIGERATED CENTRIFUGES IN MEDICAL & AESTHETIC APPLICATIONS
The 4°C Gold Standard for Preserving Biological Sample Integrity
In clinical diagnostic laboratories and aesthetic centers utilizing Platelet-Rich Plasma (PRP) therapy, procedure success strictly depends on the precise separation of blood components. EMIN Refrigerated Centrifuges effectively eliminate thermal denaturation caused by high-speed air friction through active refrigeration, ensuring maximum biological activity of enzymes and cells.
1. Frictional Heat Generation & The 4°C Standard
Rotational speeds of thousands of RPM create intense air friction inside the rotor chamber, causing temperatures to spike within minutes. Without timely cooling, this temperature elevation denatures protein structures and destroys enzymatic activity.
4°C Standard temperature to inhibit RNase & preserve alpha granules | -20°C ÷ +40°C Active temperature control range of refrigeration system | RCF (g) Standard relative centrifugal force conversion index |
2. Technical Classification of Rotor Designs
Rotor selection directly determines the phase separation interface and post-centrifugation supernatant retrieval efficiency:
| Rotor Type | Mechanical Characteristics | Optimal Application |
|---|---|---|
| Fixed-Angle Rotor (Fixed-Angle) | Sample tubes held at a fixed angle of 25°–45°. Diagonal centrifugal force drives rapid pelleting. | Pelleting cell debris, DNA/RNA extraction in molecular biology. |

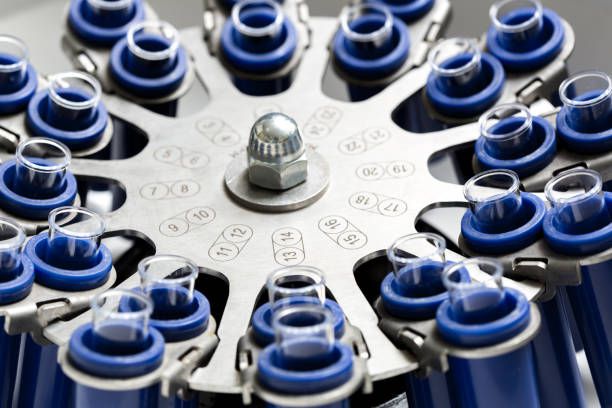

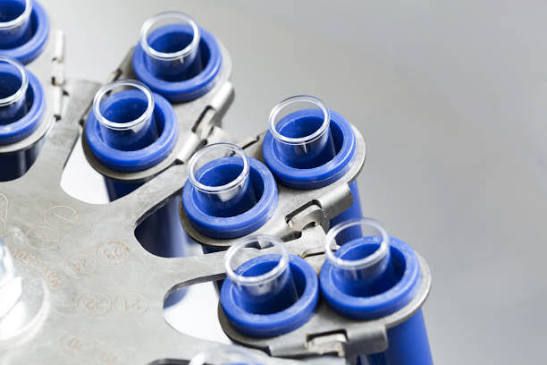

| Swinging-Bucket Rotor (Swinging-Bucket) | Buckets swing out horizontally at 90° during high-speed rotation, forming a flat, horizontal phase boundary. | Aspirating plasma, serum, and PRP without disturbing the pellet interface. |
3. Practical Clinical & Aesthetic Applications
• Platelet-Rich Plasma (PRP) Extraction
Low-temperature environments prevent premature platelet activation induced by heat. This preserves critical growth factors (PDGF, TGF-beta, VEGF) within alpha granules, directly dictating tissue regeneration and hair follicle restoration efficiency.
• Clinical Testing & Blood Banking
Processing clinical blood specimens for serum/plasma separation. Deep cooling inhibits cellular glucose consumption by blood cells and minimizes the degradation of heat-sensitive analytes.
View the full range of refrigerated centrifuges in the Cleanroom Equipment category - distributed by EMIN
4. Standard Operating Procedure (SOP) & Troubleshooting
Mandatory Technical Operational Steps:
1. Pre-cooling Activation: Operators must run the pre-cooling program to chill the chamber and rotor to 4°C prior to loading live biological samples.
2. Precise Counterbalancing: Use a micro-balance to equalize tube weights symmetrically across the rotor hub. For odd sample numbers, prepare a water-filled counterweight tube of identical mass to eliminate rotor imbalance and explosion risks.
⚠️ Common Laboratory Troubleshooting
• Chamber Frost Build-up: Occurs when opening the lid at low temperatures, causing ambient humidity condensation. Perform periodic defrosting, wipe dry with a clean cloth, and leave the lid slightly open when idle.
• Lid Lock Error: During power outages, technicians must use the manual emergency release tool located on the chassis to retrieve samples. Never force open the lid.
