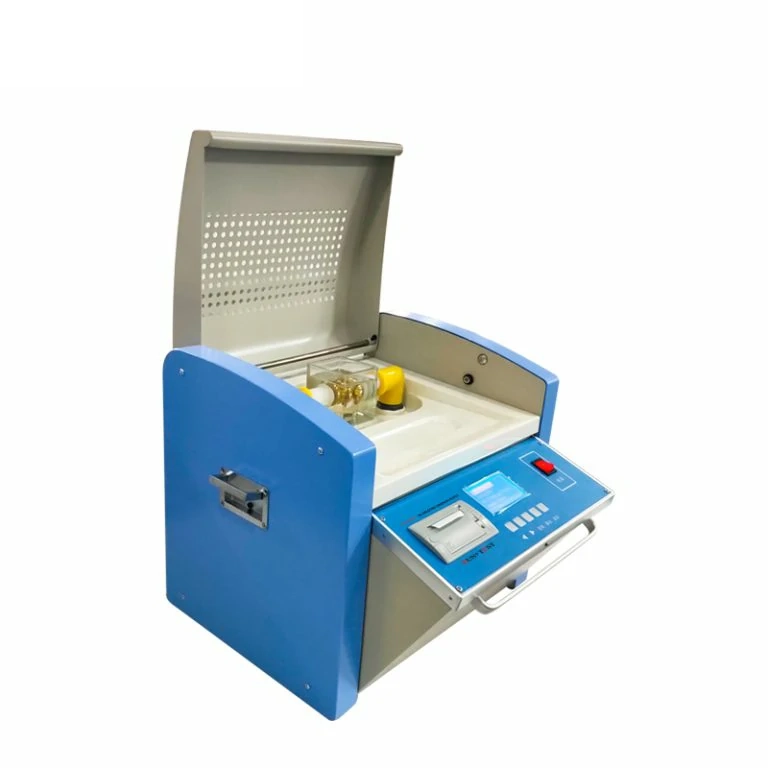

Run Test RUN-BDV100 High Quality Dielectric Strength Test Machine Transformer Oil Breakdown Voltage BDV Tester (0~100 kV)

Output Voltage: 0～100kV

Power Distortion Rate: <3%

Booster Capacity: 1.5kVA

Boosting Speed: 0.5～5.0kV/s (Adjustable)

Resting Time: 15 minutes

Boost Interval: 5 minutes

Number of Boost: 1～9

Supply Voltage: AC220V ±10%

Power Frequency: 50Hz

Power Consumption: 200W

Operating Temperature: 0～45℃

Relative Humidity: ≤75%RH

Dimension: 465×385×425mm

Features about the Transformer Oil Dielectric Test Equipment

The Oil BDV test is

1.This instrument uses a microprocessor to complete operations such as boosting, holding, stirring, static release, calculation, printing automatically., and can perform oil circulation pressure test within the range of 0-100KV.

2.Large-screen LCD display

3.Simple operation, the operator only needs to make simple settings, and the instrument will automatically complete the pressure test of 1 cup of oil sample according to the settings. The breakdown voltage value and cycle times of 1 to 6 times are automatically stored. After the test is completed, the printer can print out the breakdown voltage value and average value of each time.

4.Power-off retention, test results storage up to 100 sets, and can display the current ambient temperature and humidity.

5.The single-chip microcomputer is used to boost the voltage at a constant speed, and the voltage frequency is accurate to 50HZ, which makes the whole process easy to control.

6.With over-voltage, over-current, limit protection, etc., to ensure the safety of operators.

7.With temperature measurement display function and system clock display.

8.Standard RS232 interface, which can communicate with computer.
