Pulse amplitude: 400Vp-p
Pulse width: Adaptive
Measuring distance: >60 KM
Inaccuracy: Absolute error: ±10m, relative error: ±1%
Display: 12.1-inch all-in-one touch screen
System: Windows, USB 3.0
Test cable length: < 1 KM(short distance), <3 KM(medium distance), > 3KM( long distance)
Power supply: Lithium battery 4 hours continuous working, AC power
Sampling rate: 200MHz
Best resolution: 0.5m
Measuring method: Low voltage pulse method

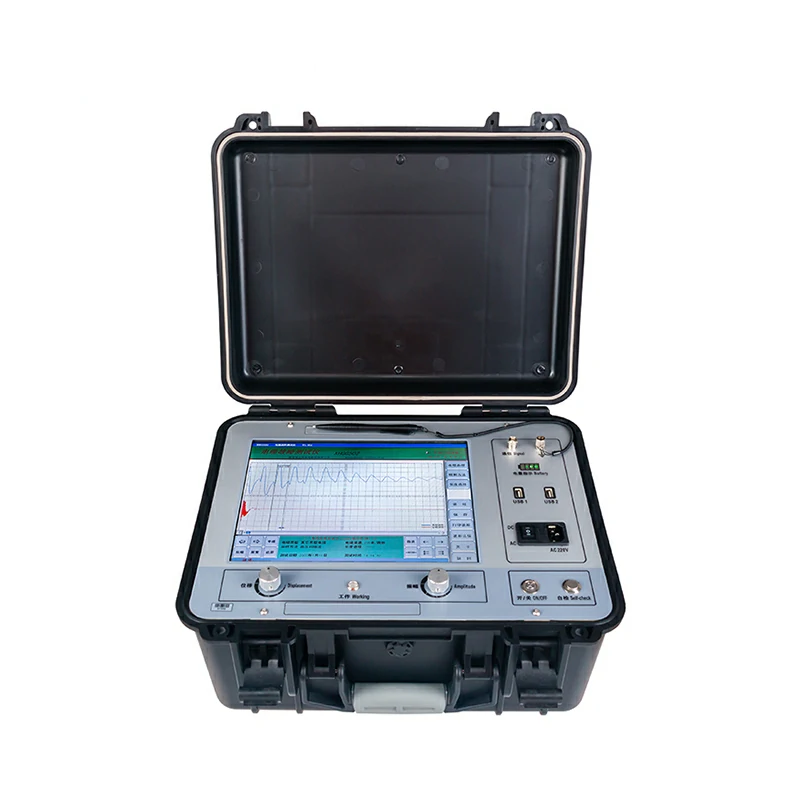

Features about the Tdr Cable Fault Locator
1.Windows system
2.Touch screen operation
3.Intelligent cable management
4.Real-time report generation
5.Superposition analysis of 10 pulses and 10 flashover waves
6.Automatic analysis of the fault distance
7.Fully automatic continuous sampling, never miss any discharge waveform
8.Massive storage function of test waveform, the waveforms tested on site can be conveniently stored in the instrument in the specified order for recall and observation at any time.
