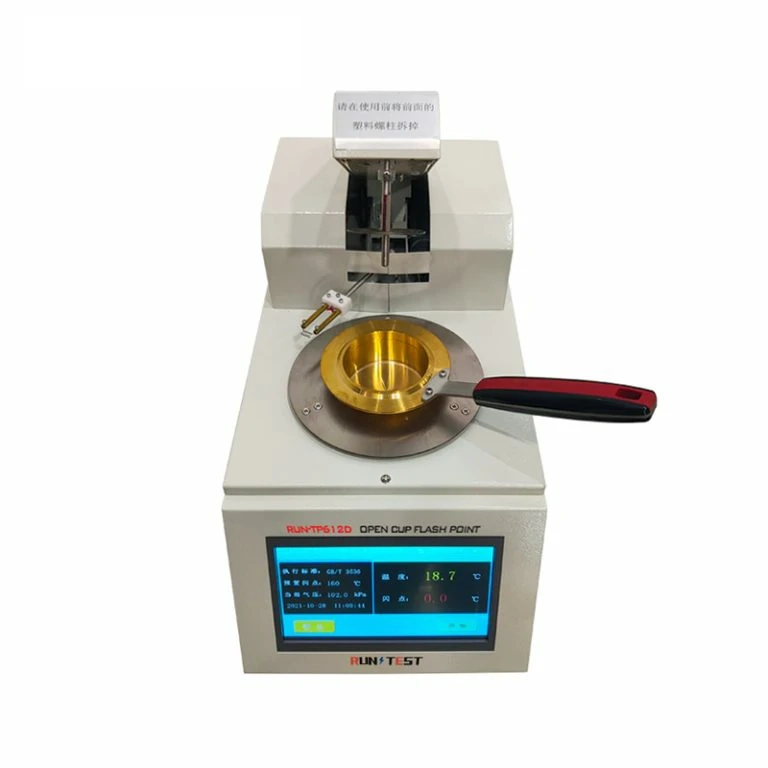

Run Test RUN-TP612D Open-Cup Flash Point Tester for Laboratory

Display: 480×272 LCD

Temperature Measurement Range: Room temperature～370.0℃

Electrical Indicator Error: ±2℃

Resolution: 0.1℃

Repeatability: ≤8℃

Reproducibility: ≤17℃

Temperature Rise Rate: Conforms to GB/T 3536 (ISO 2592:2000) standard

Ignition Method: Electronic ignition and gas flame

Operating Temperature: 10℃～40℃

Relative Humidity: 30%～80%

Working Power Supply: AC220V ±22V 50Hz ±5Hz

Overall Power Consumption: ≤600W

Overall Dimensions: 350×300×300mm

Instrument Weight: 21kg

Insulating Oil Open Cup Flash Point Tester Laboratory Flash Point Measuring Instrument

The Open-Cup Flash Point Tester measures the mixture gas formed by the test oil vapor and the surrounding air after the petroleum product sample is heated in a closed oil cup. When a flash fire occurs in contact with the flame, the lowest temperature of the test oil (that is the flash point).

Features about the Oil Flash Point Apparatus

1.480×272 large-screen color LCD display, full Chinese man-machine interaction interface, unmarked keyboard and prompt menu oriented input for pre-settable temperature, atmospheric pressure, test date and other parameters.

2.Simulation tracking, temperature rise and test time display and Chinese operation prompts.

3.Automatic correction of the impact of the atmospheric pressure on the test and calculation of the corrected values.

4.Differential detection and automatic correction of system deviation.

5.Automatic completion of scanning, ignition, detection and data printing and automatic rise and fall of test arm.

6.Automatic heating stop and forced cooling in case of excessive temperature.
