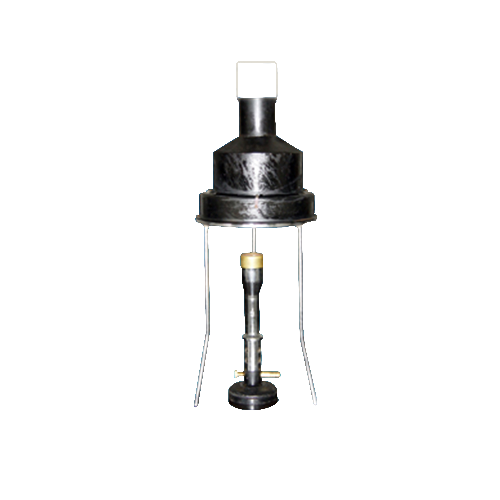

Samyon 268 残炭测定仪 (30ml)

I. Main technical features

1. The design can totally meet requirements of standard GB/T 268.

2. Simple design. Accessories complete. The test can be done as loon as equip civil gas.

II. Main technical specifications

1. Porcelain crucible： About 30ml.

2. Inner iron crucible： About (75±5)ml.

3. Outer iron crucible： About(190±10)ml with cover.

4. Supporter： Height: (250±10)mm   Bore diameter: Ф(130±5)mm

5. Flame shield： Diameter of upper port:Ф(90±2)mm

                             Diameter of lower port:Ф(82±2)mm

6. Round iron cover：  The height of underpart is (50～53)mm.

                                     The height of cone  in the middle is (25±2)mm.

                                     There is a piece of iron wire as the fire bridge on the top.

                                     The height is (50±3)mm.It is regarded as the indicator of max height.

7. Blowtorch： It adopts gas torch .

8. Dimension： Ф130mm×400mm
