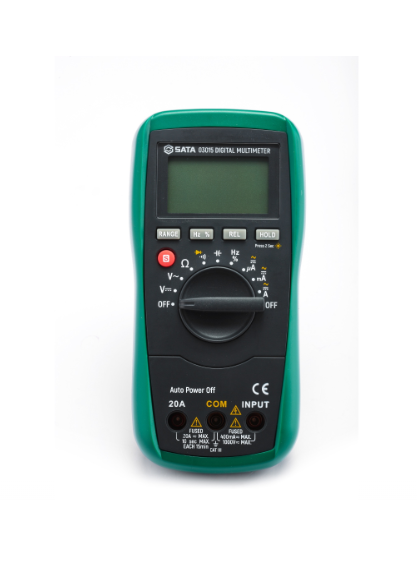

SATA 03015 Digital Multimeter (1000V, 20A AC/DC)

Security Level: CAT III 1000V

Maximum reading value: 3999

Automatic/manual range: automatic

DC voltage range±basic accuracy: 400mV±(0.8%+5) / 4V±(0.5%+5) / 40V±(0.5%+5) / 400V±(0.5%+5) / 1000V±(1.0%+5)

AC voltage range±basic accuracy: 4V±(0.8%+5) / 40V±(1.0%+5) / 400V±(1.0%+5) / 1000V±(1.2%+5)

DC current range±basic accuracy: 400µA±(1.0%+7) / 4000µA±(1.0%+7) / 40mA±(1.0%+7) / 400mA±(1.0%+7) / 4A±(1.5%+7) / 20A±(1.5% +7)

AC current range±basic accuracy: 400µA±(1.8%+7) / 4000µA±(1.8%+7) / 40mA±(1.8%+7) / 400mA±(1.8%+7) / 4A±(2.5%+10) / 20A±(2.5% +10)

Resistance range±basic accuracy: 400Ω±(1.0%+5) / 4KΩ±(0.5%+5) / 40KΩ±(0.5%+5) / 400KΩ±(0.5%+5) / 4MΩ±(1.5%+5) / 40MΩ±(3.0% +10)

Capacitance range ± basic accuracy: 40nF±(3.5%+20) / 400nF±(2.5%+5) / 4µF±(3.5%+5) / 40µF±(4.0%+5) / 400µF±(5.0%+5) / 1000µF for reference only

Frequency range±basic accuracy: 10Hz~1MHz±(1.0%+5) / 10MHz is for reference only

Duty cycle range±basic accuracy: 5%~95%±(2.0%+3)

Relative mode testing: yes

Data retention: Yes

Backlight: Yes

Automatic shut-down: Yes

Power supply: 9V 6F22 Battery

Size: 184×89×62mm

Weight: 440g (including battery and case)

●High performance, low power consumption and auto-range function

●Main features: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature measurement, backlight

●Sturdy, safe and reliable, full-range overload protection

●One 9 V 6F22 battery
