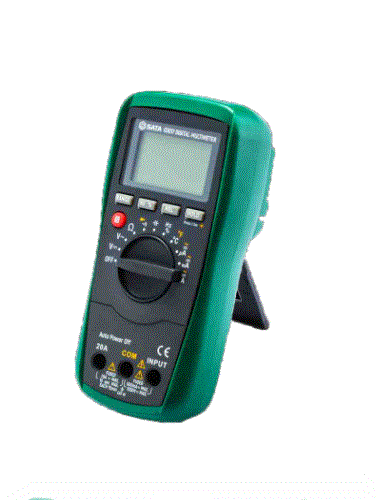

SATA 03017 Digital Multimeter With Temperature Measurement (1000V, 20A AC/DC)

Security Level: CAT III 1000V

Maximum reading value: 5999

Automatic/manual range: automatic

DC voltage range±basic accuracy: 600mV±(0.8%+5) / 6V±(0.5%+5) / 60V±(0.5%+5) / 600V±(0.5%+5) / 1000V±(1.0%+5)

AC voltage range±basic accuracy: 6V±(0.8%+5) / 60V±(1.0%+5) / 600V±(1.0%+5) / 1000V±(1.2%+5)

DC current range±basic accuracy: 600µA±(1.0%+7) / 6000µA±(1.0%+7) / 60mA±(1.0%+7) / 600mA±(1.0%+7) / 6A±(1.5%+7) / 20A±(1.5% +7)

AC current range±basic accuracy: 600µA±(1.8%+7) / 6000µA±(1.8%+7) / 60mA±(1.8%+7) / 600mA±(1.8%+7) / 6A±(2.5%+10) / 20A±(2.5% +10)

Resistance range±basic accuracy: 600Ω±(1.0%+5) / 6KΩ±(0.5%+5) / 60KΩ±(0.5%+5) / 600KΩ±(0.5%+5) / 6MΩ±(1.5%+5) / 60MΩ±(3.0% +10)

Capacitance range ± basic accuracy: 40nF±(3.5%+20) / 400nF±(2.5%+5) / 4µF±(3.5%+5) / 40µF±(4.0%+5) / 400µF±(5.0%+5) / 1000µF for reference only

Frequency range±basic accuracy: 10Hz~1MHz±(1.0%+5) / 10MHz is for reference only

Duty cycle range±basic accuracy: 5%~95%±(2.0%+3)

Temperature range±basic accuracy: -20℃~0℃±(6.0%+5℃) / 0℃~400℃±(1.5%+4℃) / 400℃~1000℃±(1.8%+5℃)

Relative mode testing: yes

Data retention: yes

Backlight: yes

Automatic shut-down: yes

Power supply: 9V 6F22 battery

Size: 184×89×62mm

Weight: 440g (including battery and case)

●High performance, low power consumption and auto-range function

●Main features: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature measurement, backlight

●Sturdy, safe and reliable, full-range overload protection

●One 9 V 6F22 battery
