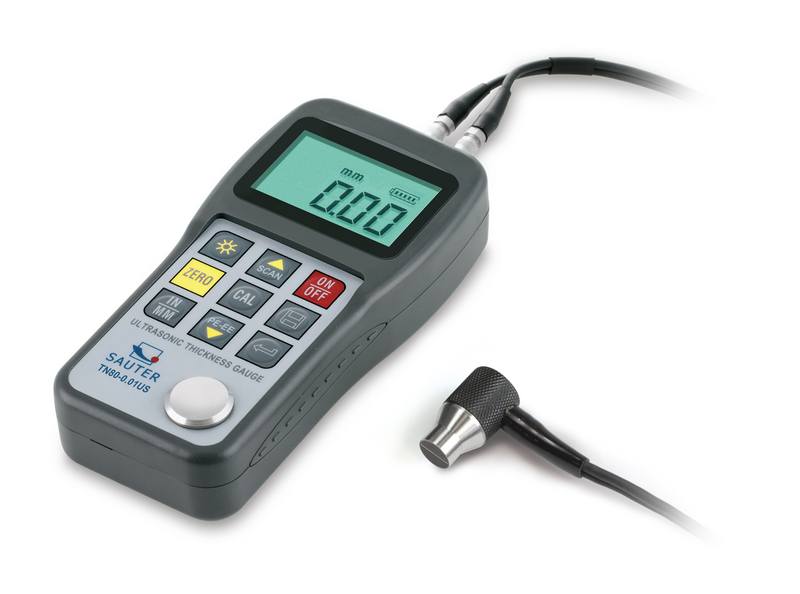

SAUTER TN GOLD 80 Ultrasonic Thickness Gauge external

Units: mm, inch

Battery: 2×1.5 V AA

Interfaces: USB-Device

Cable length: 0,9 m

Speed of sound: 1000 m/s – 9999 m/s

Material housing: plastic

Tolerance (% of [Max]): 0,5%

Measuring range pulse-echo: 0,75 mm – 80 mm

Speed of sound [Max] (m/s): 9999 m/s

Speed of sound [Min] (m/s): 1000 m/s

Measuring head measuring frequency: 7 MHz

Dimensions completely mounted (W×D×H): 150×74×32 mm

Readability material thickness [d] (mm): 0,01 mm

Material thickness pulse-echo [Max] (mm): 80 mm

Material thickness pulse-echo [Min] (mm): 0,75 mm
