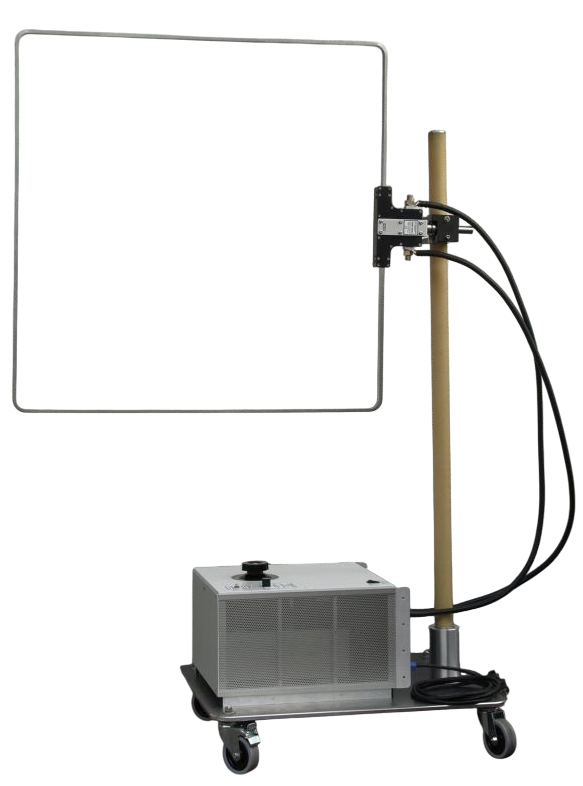

Schwarzbeck FESP 5410-1 Square Induction Coil (DC ... 10 MHz, 2.9 µH)

Frequency range: DC ... 10 MHz

Side length: 1 m ± 1%

Number of turns: 1

Magnetic field strength @ 1 A coil current: 0.9 A/m

Max. continuous current: 400 A

Max. current (10 min): 600 A

Max. continuous field strength (coil center): 360 A/m

Inductance: 2.9 µH

Material / Cross-section: Aluminium / 10 × 25 mm

Mounting tube: 22 × 195 mm

Weight: 4.1 kg

Connector: thread (male) M16

 Datasheet
