- Large OLED Display
Displays resistance mantissa and exponent, temperature, relative humidity and test voltage
- Internal Memory
Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.
- Measurement Stability Modes
Sets the 15-second electrification period for test requirements*

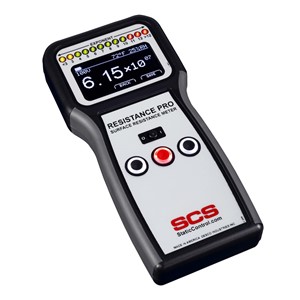

- Digital Compliance Verification Surface Resistance Meter
Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others
- Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms
Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments
- Under Load Test Voltages (10V or 100V ±5%)
Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification
- 770007 Concentric Ring Probe Accessory
Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
- 770765 Handheld Electrode Accessory
Meets resistance measurement requirements of TR53, ANSI/ESD STM97.1 and other documents
