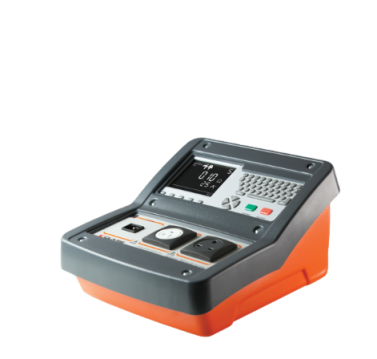

Seaward STM/L Led and Lighting Testers (1.5kV, 3.0kV, 0.1~10.00mA)

Flash/Hipot Test (Class I)

Test Voltage Class I: 1.5kV AC

Display Range: 0.1 - 10.00mA

Resolution: 0.01mA

Accuracy: +/- 5% +/- 2 digits

Pass Levels: Selectable up to 10mA

Flash/Hipot Test (Class II)

Test Voltage Class I: 3.0kV AC

Display Range: 0.1 - 10.00mA

Resolution: 0.01mA

Accuracy: +/- 5% +/- 2 digits

Pass Levels: Selectable up to 10mA

Earth/Ground Bond Test

Test Voltage: 6VAC (open circuit)

Test Currents: 25A, 10A, 4A, 100mA AC into short circuit

Range: 0.04 - 20Ω

Resolution: 0.01Ω

Accuracy: +/- 5% +/- 2 digits

Pass Levels: User selectable

DC Insulation Test

Test Voltages: 250V, 500VDC

Range: 100kΩ - 50MΩ

Accuracy: +/- 5% +/- 2 digits

Earth Leakage (Load Leakage)

Voltage: Mains Supply

Range: 0.1 – 20mA

Resolution: 0.01 mA

Accuracy: +/- 10% +/- 2 digits (1.00 – 20mA)

Pass Levels: Selectable up to 10 mA

Substitute Leakage (Short to case test)

Voltage: 40VAC nominal at 230V/110V supply

Range: 0.1 – 20mA

Resolution: 0.01 mA

Accuracy: +/- 10% +/- 2 digits (1.00 – 20 mA)

Pass Levels: Selectable up to 15 mA

Power/Run/Load Test

Measured Load: 0 – 4.2kVA

Resolution: 0.01 kVA

Accuracy: +/- 10% of reading, +/- 2 digits

Polarity

Test performed: Live & Neutral continuity & polarity

External Connections:

Serial port, Parallel port, Guard Switch, Beacon

General Specification:

Dimensions (w x h x d): 450 x 410 x 155mm / 17.7 x 16.1 x 6.1”

Weight: 9kg / 19.8lb

Operating Voltage Range: 103V – 126V, 207V – 253V, 45Hz – 65Hz

Operating Temperature: 0 – 40°C

EN 50191: Compliant when used with appropriate accessories

Standard Accessories (Supplied with STM/L)

HT probe

Guard with plug

Calibration certificate

Earth bond lead

Instruction manual

Serial-PC lead (9-9 way)
