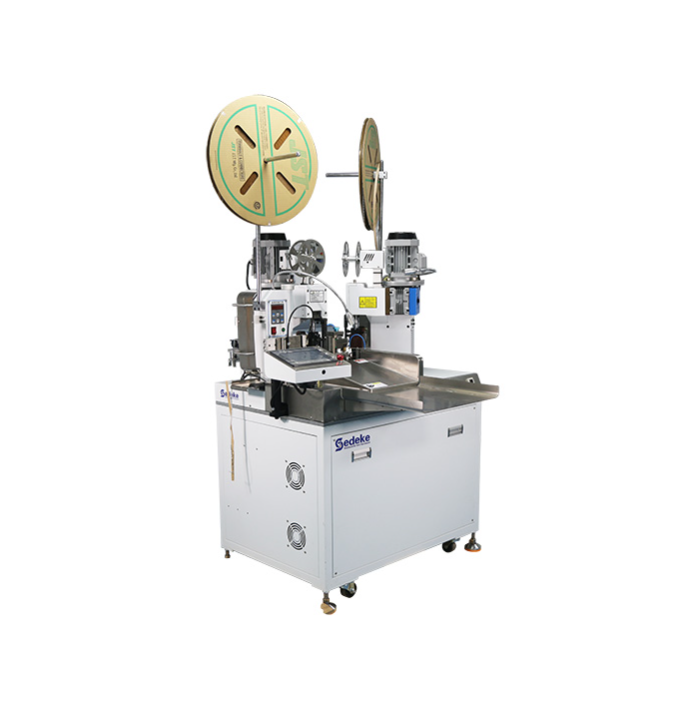

Sedeke ACC-102A Fully automatic terminal crimping machine (AWG#30-AWG#18)

Power supply: 50/60HZ 220V single phase

Processing length: 30mm (full length)～9999mm

Wire processing wire range: Standard machine: AWG#30–AWG#18; Customized: AWG#14–AWG#18

Terminal Machinable Range: 1.25–3.96mm horizontal and straight molds are universal, suitable for flag molds, etc

Capacity: 3200pcs～3600pcs/hour (30mm～200mm full length)

Stripping length: A end 0–6mm; B end 0–8mm

Cutting accuracy: ±(0.2%*L+1)mm

Air pressure: 0.5–0.7Mpa (5–7KG/m³)

Dimensions: 1000×1700×1550mm

Weight: About 450KG±15KG
