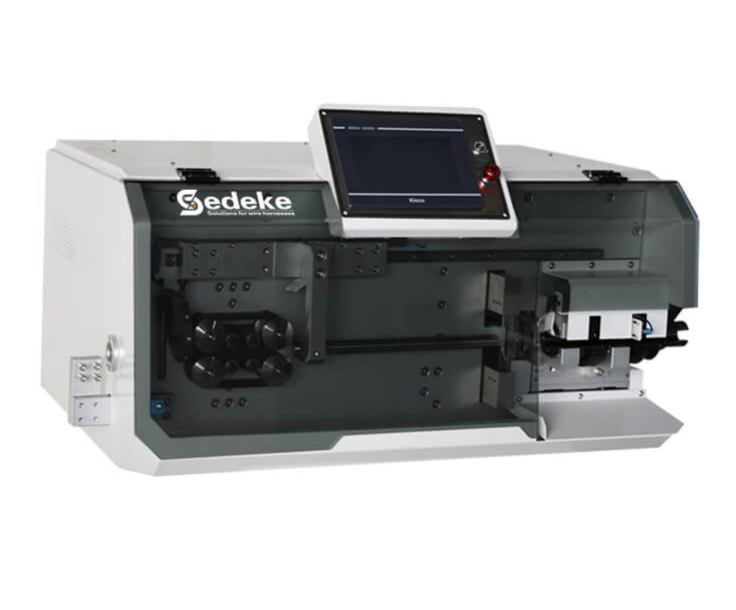

Sedeke ESC-BZ30-3D Wire Cut Strip 3D Bending Machine (0.75-30 mm²)

Processing range: 0.75-30 mm²

Cutting length: 1-99999.99 mm

Max. guide tube diameter: 14 mm

Bending method: Electric bending, digital adjustment

Bend direction: X+/X-, Y+/Y-, Z+/Z-

Speed: 1000 PCS/hour (according to the length and size of the wire)

Minimum stripping length: Total length – left stripping length – right stripping length >70 mm

Dimensions (L x W x H): 600x480x550 mm

Weight: 120 kg

Electrical connection: 220V 50/60Hz

Wire type: Single core wire

Air source: 0.5-0.85 Mpa clean air source
