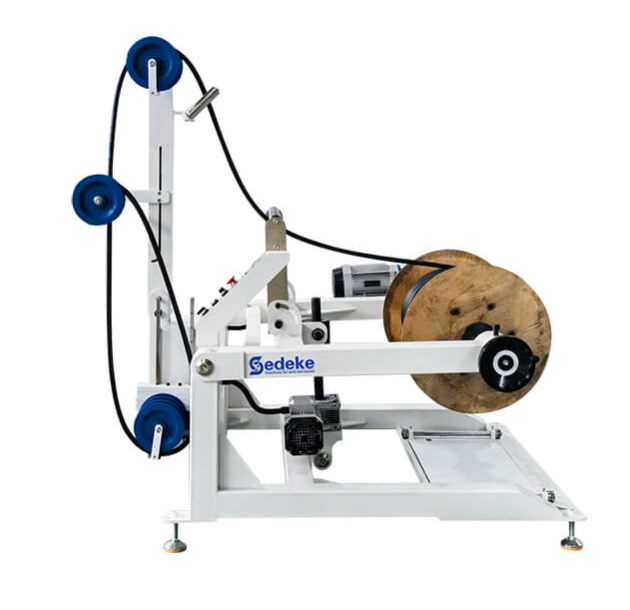

Sedeke PF-120 Large Automatic Wire Prefeeding Machine (300–1000 mm)

Be Applicable: Shaft assembly line

Weight Capacity: 800 Kg

Reel Outer Diameter: 300–1000 mm

Through Hole Diameter (coil inner diameter): 60–140 mm

Reel Height (Reel Width): 300-700 mm

Motor Power: 2.2 kW

Drive Mode: Three-phase motor + reducer

Rated Speed: 1450

Maximum Speed: 2200

Installation Method: Double clip top

Wire Type: Wooden cylinder or plastic cylinder / iron cylinder

Placement Method: Clip top

Speed Mode: Adaptive stepless speed regulation

Wire Diameter: 30 mm

Dimensions: 1600×1400×1200 mm
