SEKONIC FEM-1000V-EXHT Viscometer (500 - 20,000mPa・s)

Explosion Proof:

Probe: Ex d II BT6

Slave: Ex d II CT6

Viscosity:

L range: 0.5 - 1,000mPa・s

M range: 10.0 - 5,000mPa・s

H range: 500 -20,000mPa・s

Accuracy & Repeatability of viscosity:

L range, M range, H range: +/- 1% of actual reading

Temperature:

Probe: 0 - 300℃

Thermometer: 0 - 300℃

Calibration: Calibration by Viscometer calibration standard liquid JIS Z 8809-2011

Output: 4-20mA output and RS232C

Ambient: 10 - 40℃, 20 - 80%RH(No condensation except for Detector part)

Power Supply: DC24V 250mA

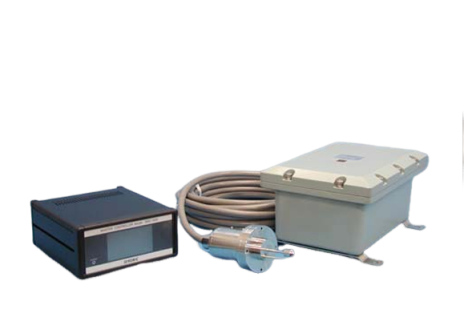

Composition:

Probe: FVM80A-PEXH / φ175x349/9kg

Slave Controller: FEM-1000-EXSC (240x350x174/13kg)

Master Controller (SMC-1000V 99x210x230/3kg)
