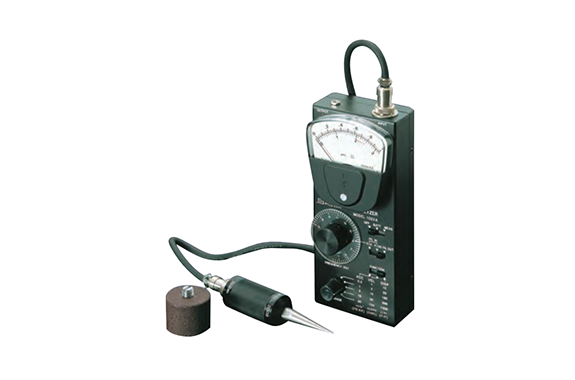

Showa Sokki 1022A High-function compact analog vibrometer

Acceleration measurement range: 0.3,1,3,10,30m/s2 (Peak)/ full scale

Velocity measurement range: 1,3,10,30,100mm/s (RMS)/ full scale

Displacement measurement range: 10,30,100,300,1000 µ m (P-P)/ full scale

Frequency range: 10~1000Hz

Analysis frequencies: 10~100OHz Q=10

AC output: ±1V/ full scale

Accuracy: 3% (80Hz sine wave, 100 µm (P-P))

Temperature range in use: -10°C~+50°C

Power supply (dry batteries): Prismatic cells in 6P configuration 6F22(9V) x1, at least 24 hours of continuous operation

Dimensions and weight:

Body (W)85×(H) 190×(D)55mm, 750g

Detector (H)72x(Dia)30mm, 140g

Contact pin (L)55mm, 20g

Standard configuration

Body 1022A, MODEL-2008 motorized velocity detector

CA2411-1 detector cable

CA1311-1 output cable

Portable aluminum case, 6P prismatic cell type

Options:: MG-2 magnet
