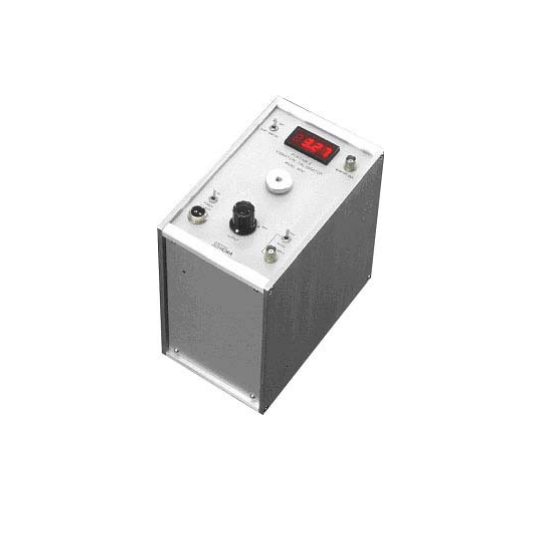

Showa Sokki 8100 Portable Vibration Calibrator

Excitation force: Maximum 9.8N

Maximum amplitude: 5mm(P-P)

Acceleration range: 0~199.9m/s²(Peak)

Displacement range: 0~1.999mm(P-P)

Accuracy: Within 3% (80Hz, 10m/s2, 25°С)

Excitation frequencies: 80Hz, 500Hz switchable; Signal inputs from external function generators etc. can also be used. (5 - 5kHz)

Excitation table: ø25mm, holes tapped for M6 P=1 screws

Output: AC±2V/ full scale

Temperature range: -20°C~50°C

Power supply: Within AC100V±10V 50/60Hz 1A

Dimensions and weight: 116 (W) ×199 (H) ×199 (D) mm, approx. 4.2kg

Options: Excitation table $25mm, holes tapped for M5 screws; Excitation table $25mm, holes tapped for 10-32UNF screws
