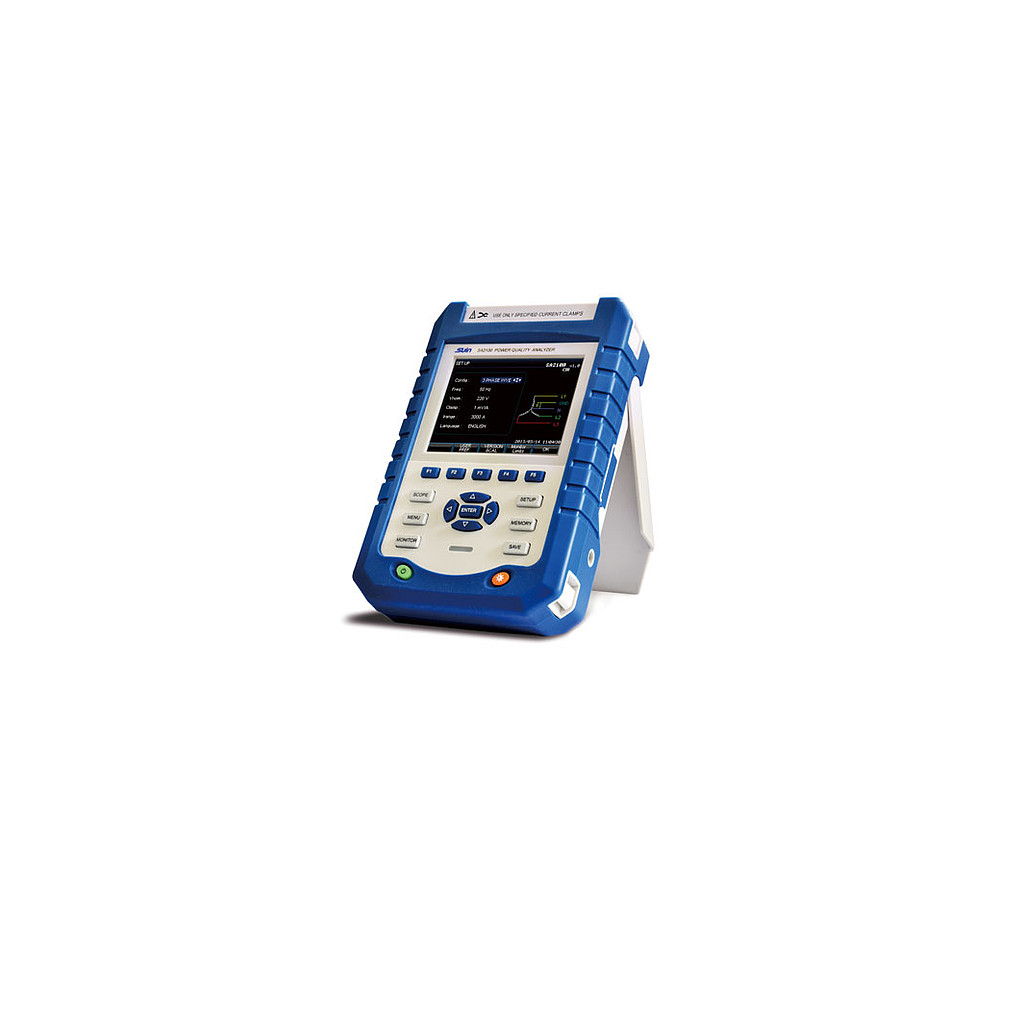

SUIN SA2100 S类电能质量分析仪 (1000Vrms, 1000Arms)

Voltage/Current/Frequency

Measurement Range/Resolution/Accuracy

Vrms(AC+DC)

1~1000Vrms/ 0.1Vrms/ ±0.5% of nominal voltage

Vpk

1 ~ 1400Vpk/0.1Vpk/±0.5% of nominal voltage

V(Crest Factor)

1.0 ~ >2.8/ 0.01/ ±5%

Arms (AC)

10mV/A

0~100A/ 0.1A/ ±0.5%±0.2A

1mV/A

1~1000A/ 0.1A/ ±0.5%±0.2A

50mV(65mV)/1000A

15~5000A/ 1A/ ±1%±2A

A(Crest Factor)

1 ~ 10/ 0.01/ ±5%

Frequency

42.5~57.5Hz (50Hz nominal)/ 0.01Hz/ ±0.01Hz

51~69Hz (60Hz nominal)/ 0.01Hz/ ±0.01Hz

385~414Hz (400Hz nominal)/ 0.01Hz/ ±0.1Hz

Logger

Recording: user-defined parameters for 4 phases at the same time

Memory: Data stored in   Micro SD card, 8GB

Duration Time: 2 hrs to 1 year, depends on the recording items and time interval

Interval: 1s to 60 minutes

Channel(Voltage/Current): 4/4

Voltage Range: 1-1000Vrms, 6000V transient voltage

Current Range: depends on supplied current clamp

Micro SD card(bulid-in): 8GB

Battery: NI-MH, 3800Ah/>7h

interface: USB Host, LAN

Screen: 5.6' TFT LCD with resolution320*240(SA2100)

Language: 10-Chinese, English, French, German, Korean, Polish, Portuguese , Spanish, Turkish,Russian

Dimension/Weigh: 262*173*66mm/1.6kg
