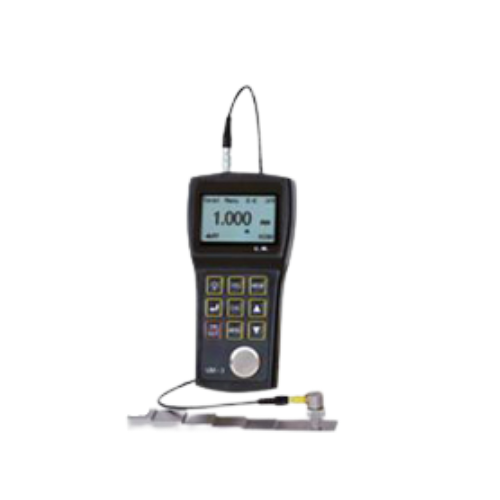

T-measurement UM-3 精密测厚仪 (1.5mm ~ 18mm/ 0.25 mm ~10 mm)

Operating principle:

     standard mode is pulse-echo method

     coating mode is echo-echo method

Accuracy: ±0.005mm (if thickness < 3mm)

                 ±0.05mm (if thickness < 20mm)

Unit Size: 149mm×73mm×32mm (H×W×D)

Range: 1.5mm to 18mm in interface-echo mode

             0.25mm to 10mm in echo-echo mode

Working Temperature: -10 °C to +50 °C

Battery life: 200 hours

Data logger: 500 test values

Velocity: 1000 to 9999 m/sec

Display: 128×64 pixel LCD with backlight

Unit: mm and inch

Power : 2×1.5V AA battery
