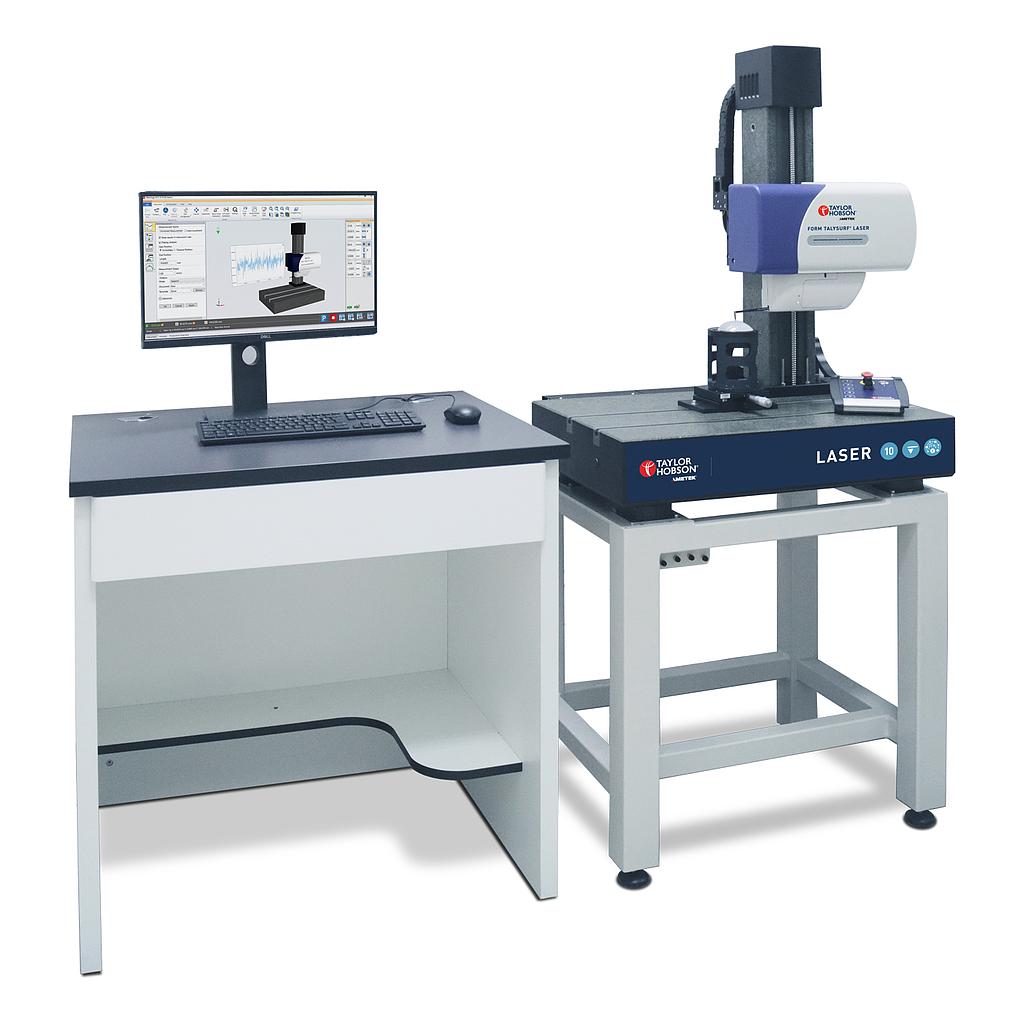

Taylor Hobson LASER High range, high resolution surface finish, form and contour measurement system

Key system benefits and features

The advancement in metrology software design that the market has been waiting for...

Taylor Hobson's new advanced software enables dimensioning in accordance with part drawings and provides an exact reflection of the Part Coordinate System (PCS) delivering the final link in the manufacturing loop.

Metrology 4.0 software is easy to use with an intuitive user-interface, virtual display and real time control. The state-of-the-art point and move axis control function (SMART Move) delivers precise positioning and accurate measurement.

The Form Talysurf® LASER gauge provides the ability to measure included angle, surface finish and contour in a normal and inverted direction with the same speed and accuracy.

Through this development, Taylor Hobson has addressed challenges faced day-to-day by bearings, injectors and precision component manufacturers. The Form Talysurf® LASER delivers class-leading Angle, Radius, Form capabilities.

One measurement, multiple results, instant feedback

Surface Finish - High resolution gauges with low noise enable roughness, waviness and form in one measurement.

Step Height - Evaluate step heights with higher resolution gauge ranges to ISO standards and more.

Contour - Our patented calibration technique enables measurement of radii, angle, height, length, distance.

Topography - Using an optional motorized Y-stage and Metrology 4.0 software, transform your conventional 2D measurements into 3D.

Unique Software to support manufacturing

Taylor Hobson has developed the Production Interface and Pallet of Parts Interface to support automation, data exchange and process control in manufacturing environments.

The Q-DAS accredited production interface is designed for shop floor environments and provides direct communication with SPC software, which delivers feedback to your manufacturing process.

This form of monitoring is used widely in automotive and aerospace component manufacturing, where data and strict standard operating procedure control is mandatory.
