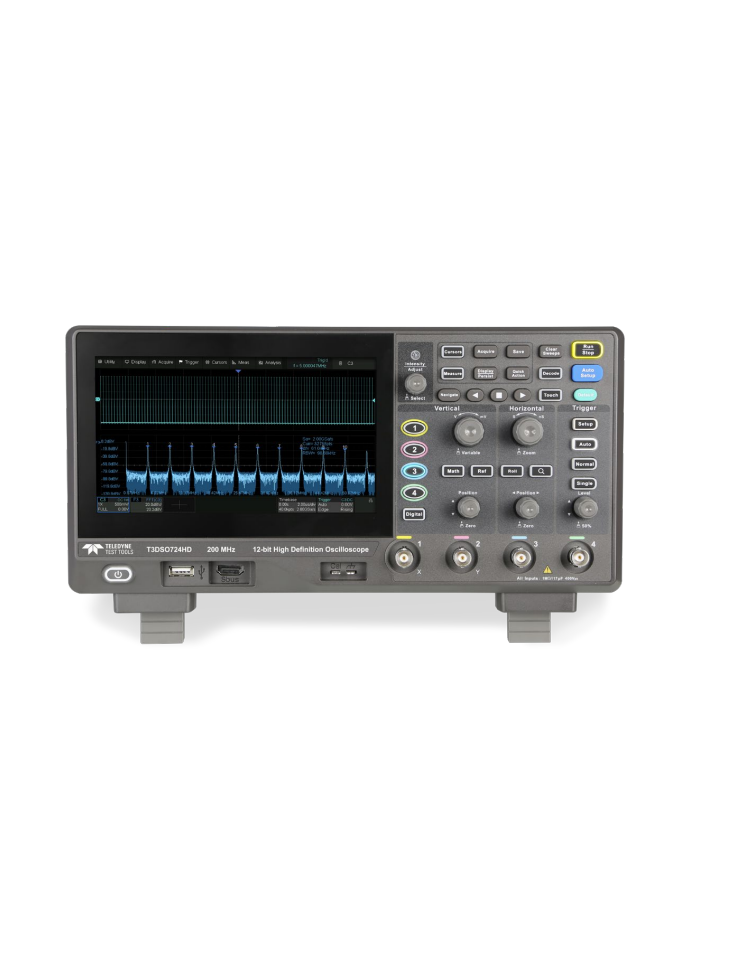

Teledyne Lecroy T3DSO724HD Digital Oscilloscope (12-bit, 200 MHz, 2 GS/s, 4-CH)

Analog Channels: 4

Bandwidth: 200 MHz

Vertical Resolution: 12-bit

Sample Rate (Max.):

One-channel mode: 2 GS/s

Two-channel mode: 1 GS/s

Four-channel mode: 500 MS/s

Memory Depth (Max.):

One-channel mode: 100 Mpts/ch

Two-channel mode: 50 Mpts/ch

Four-channel mode: 25 Mpts/ch

Waveform Capture Rate (Max.):

Normal mode: 120,000 wfm/s

Sequence mode: 500,000 wfm/s

Trigger Type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth Edge, Setup/Hold Time, Serial.

Serial Trigger and Decode: I²C, SPI, UART, CAN, LIN.

Measurement: Supports 50+ parameters, statistics, histogram, trend, and track.

Math: 4 traces; 2 Mpts FFT; +, -, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, eˣ, 10ˣ, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter. Supports formula editor.

Data Analysis: Search, Navigate, History, Mask Test, Counter, Bode Plot, and Power Analysis.

Digital Channel (Optional): 16-channel; maximum sample rate up to 1 GS/s; record length up to 10 Mpts.

USB AWG Module (Optional): One channel, 50 MHz, sample rate of 125 MHz, waveform length of 16 kpts, isolated output.

I/O: 2 × USB 2.0 Host, USB 2.0 Device, 10M/100M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), Digital Analyzer Input.

Probe: PP215 (×4).

Vertical – Analog

Channel: 4

Bandwidth (-3 dB) @ 50 Ω: 200 MHz

Flatness @ 50 Ω:

DC–10% BW: ±1 dB

10%–50% BW: ±2 dB

50%–100% BW: +2 dB / -3 dB

Rise Time @ 50 Ω (Typical): 1.8 ns

Resolution: 12-bit

ENOB (Typical): 8.4-bit

Noise Floor (rms, @ 50 Ω, typical, 1 mV/div): 70 μV (full bandwidth)

Range: 8 divisions

Vertical Scale (Probe 1X), 1 MΩ: 0.5 mV/div–10 V/div

DC Gain Accuracy:

0.5 mV/div–4.95 mV/div: ±1.5%

5 mV/div–10 V/div: ±0.5% typical, ±1.0% maximum

Offset Accuracy: ±(0.5% of the offset setting + 0.5% of full scale + 1 mV)

Offset Range (Probe 1X), 1 MΩ:

0.5 mV/div–5 mV/div: ±1.6 V

5.1 mV/div–10 mV/div: ±4 V

10.2 mV/div–100 mV/div: ±8 V

102 mV/div–1 V/div: ±80 V

1.02 V/div–10 V/div: ±400 V

Hardware Bandwidth Limit: 20 MHz, 200 MHz

Low-Frequency Response (AC Coupling, -3 dB): 2 Hz (typical)

Overshoot (150 ps Edge @ 50 Ω, Typical): 10%

Coupling: DC, AC, GND

Impedance: 1 MΩ: (1 MΩ ±2%) || (17 pF ±2 pF)

Maximum Input Voltage: 1 MΩ ≤400 Vpk (DC + AC), DC–10 kHz

SFDR: ≥35 dBc

CH-to-CH Isolation (@ 50 Ω), DC–Max. BW: >40 dB

Probe Attenuation: 1X, 10X, 100X, Custom

Horizontal

Time Scale: 1 ns/div–1000 s/div

Range: 10 divisions

Display Mode: Y-T, X-Y, Roll

Roll Mode: ≥50 ms/div

Skew (CH1–CH4): <100 ps

Time Base Accuracy: ±2 ppm

Display

Display Type: 7" TFT LCD with capacitive touch screen

Resolution: 1024 × 600

Contrast (Typical): 500:1

Backlight (Typical): 500 nit

Display Settings:

Grid: 8 × 10

Display Type: Dot, Vector

Persistence Time: OFF, 1 s, 5 s, 10 s, 30 s, Infinite

Color Display: Normal, Color

Language: Simplified Chinese, Traditional Chinese, English, French, Japanese, German, Spanish, Russian, Italian, Portuguese

Built-in Help System: Simplified Chinese, English

Environmental

Temperature:

Operating: 0 °C–40 °C

Non-operating: -30 °C–70 °C

Humidity:

Operating: 5%–90% RH at 30 °C, derated to 50% RH at 40 °C

Non-operating: 5%–95%

Altitude:

Operating: ≤3,000 m at 25 °C

Non-operating: ≤15,000 m
