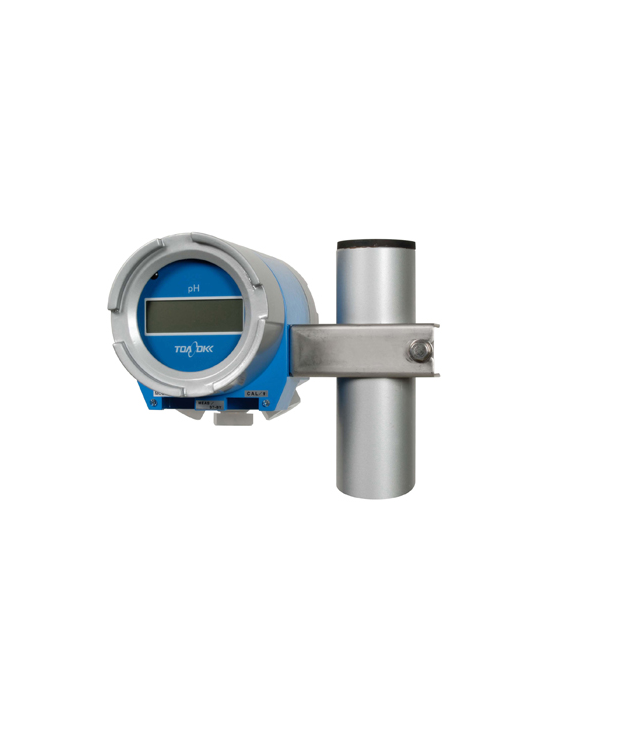

TOA DKK HDM-135A pH Meter (0-14pH)

Measurement range:

0-14pH

mV:-600~600 mV

Temperature: 0~100°C

Display only. No output signal.

Display: Digital LCD

Min.Indication: pH: 0.01, mV: 0.1. Temperature: 0.1°C

Performance (excluding detector):

Linearity: Within ±0.03pH (at equivalent input)

Repeatability: Within ±0.02pH or less (at equivalent input)

Transmission Output: 4~20mA DC, isolated, type Load resistance MAX 6502 or less.

Transmission Output Range: Adjustable range hetween 1 to 14 pH steps with minimum width of 2 pH.

Power supply: 24VDC ±10%

Power consumption: 0.6VA or less

Ambient conditions: -20-55°C, 99% (RH) or less (no condensation)

Construction: Outdoor installation, IP55 (dust/jet-proof type)

Dimensions: 118 (W) x 129 (H) x 178 (D) mm

Mounting: Mounted on 50A pipe

Weight: Approx. 3.5kg

Cable entry: G 3/4 (PF 3/4 F), 3 ports
