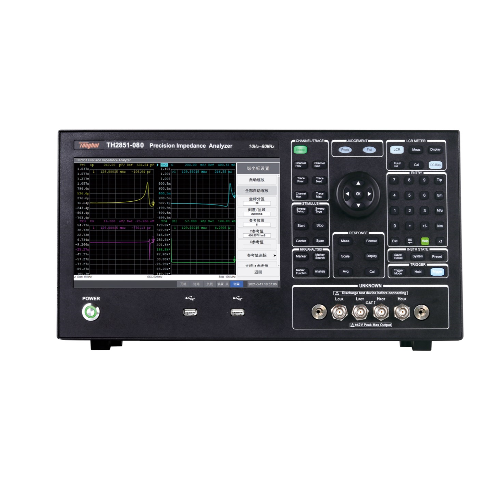

Tonghui TH2851-080 精密仪表分析仪 (10 Hz-80 MHz)

Display: 10.1 Inches TFT LCD Display 1280×RGB×800, Touch Screen

AC Parameter: Cp/Cs、Lp/Ls、Rp/Rs、|Z|、|Y|、R、X、G、B、θ、D、Q、VAC、IAC

DC Parameter: VDC、IDC、DCR

Test Frequency

+ Range: 10 Hz - 80 MHz

+ Resolution: 1mHz

+ Relative frequency tolerance: ≤±0.0007%

Test Level

+ AC Voltage: 5mV—2Vrms

+ Resolution: 1mV

+ AC Current: 50uA—20mArms

+ Resolution: 10uA

DC Bias:

+ Voltage: 0V-±40V

+ Resolution: 1mV

+ Current: 0mA-±100mA

+ Resolution: 40μA

Test Display Range: E means 1,000,000,000,000,000,000

Cs, Cp: -9.99999EF -+9.99999EF

Ls, Lp: -9.99999EH -+9.99999EH

D: -9.99999E -+9.99999E

Q: -9.99999E -+9.99999E

R, Rs, Rp, X, Z: -9.99999EΩ -+9.99999EΩ

G, B, Y: -9.99999ES -+9.99999ES

Vdc: -9999V -+9999V

Idc: -9999mA -+9999mA

θr: -999999rad -+999999rad

θd: -180.0deg -+180.0deg

Δ%: -999999% -+999999%

Test terminal configuration: Four Terminal Pair

Output impedance: 25Ω / 100Ω

Input Voltage: 100-120VAC/198-242VAC Option, 47-63Hz

Power consumption: Max 150VA

Measurement（WxHxD）: 428x220x325

Weight: 14.5kg
