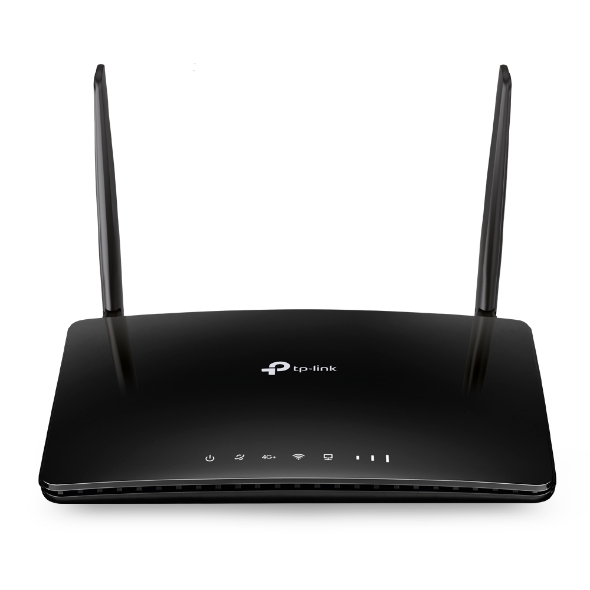

Tp-Link Archer MR600 Router Wi-Fi

Hardware Specifications

Interface: 1 × 10/100/1000 Mbps LAN/WAN Port

3 × 10/100/1000 Mbps LAN Ports

1 × Nano SIM Card Slot

2 × External SMA-F Antenna Interfaces

Buttons: WPS/Reset Button, Wi-Fi On/Off Button, Power On/Off Button

External Power Supply (EU): Power Adapter

Input: 100–240 V~ 50/60 Hz 0.6 A

Output: 12 VDC 1.5 A

Dimensions (W × D × H): 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)

Antennas: 2 × Detachable 4G LTE Antennas

Software Features

Quality of Service: Bandwidth Control

Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)

Management: TP-Link Cloud, Local Management, Remote Management

DHCP: Server, DHCP Client List, Address Reservation

Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: TP-Link, DynDNS, NO-IP

VPN: PPTP VPN, OpenVPN, IPSec VPN

Access Control: Parental Control, Local Management Control

Protocols: IPv4, IPv6

Guest Network: 2.4 GHz Guest Network × 1, 5 GHz Guest Network × 1

Wi-Fi Features

Wi-Fi Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency Bands: 2.4 GHz and 5 GHz

Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity:

5 GHz:

11a 54M: -77 dBm

11ac HT20: -73 dBm

11ac HT40: -68 dBm

11ac HT80: -64 dBm

11n HT20: -77 dBm

11n HT40: -73 dBm

2.4 GHz:

11g 54M: -74 dBm

11n HT20: -72 dBm

11n HT40: -69 dBm

Wi-Fi Features: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover: Yes

Wi-Fi Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

Transmit Power: CE: ≤20 dBm (2.4 GHz); ≤23 dBm (5 GHz)

Network Type:

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G:

DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Carrier Aggregation:

B1+B3/B5/B7/B8/B20

B3+B1/B3/B5/B7/B8/B20/B28/B38/B40

B5+B1/B3/B5/B7/B40

B7+B1/B3/B5/B7/B8/B20/B28

B8+B1/B3/B7

B20+B1/B3/B7

B28+B3/B7/B40

B38+B38

B40+B40

B41+B41

Others

Certification: CE

Package Contents: 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600, 1.5 m Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

Environment:

Normal Operating Temperature: 0°C to 40°C (32°F to 104°F)

Extreme Operating Temperature: -10°C to 55°C (14°F to 131°F) (Tested by a government-authorized laboratory in Vietnam)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90%, non-condensing

Storage Humidity: 5% to 90%, non-condensing
