Detector Data:
Type: Uncooled FPA
IR resolution: 384×288
Pixel pitch: 17μm
Spectral range: 7.5～14μm
NETD/Sensitivity: 80mK
Lens Data:
FOV: 24°× 18°
Minimum imaging distance: 30cm
IFOV: 1.13mrad
Focus: Auto/Motor
Lens(optional): 15mm lens
Image Performance:
Image enhancement: IVE image enhancement algorithm
Frequency: 25Hz
Digital zoom: 2X、4X
Color palettes: 10 options (including iron red, rainbow, black hot and white hot, etc.)
Measurement:
Temperature range: +30℃～+45℃
Measurement accuracy: ±0.5℃ or ±0.3℃(with blackbody)
Measurement correction: Auto
Power System:
Working voltage DC: 12V
Power consumption: <6w
Environment Parameters:
Operating temperature range: -20℃～+50℃ (ambient temperature 10℃-32℃ accurate measurement)
Storage temperature range: -40℃～+70℃
Humidity: ≤95%(non-condensing)
Vibration: 2G(IEC60068-2-6)
Shock: 25G(IEC60068-2-29)
Physical data:
Size: 136mm(L)×65mm(W)×67mm(H)
Weight: ≤500g
Mounting: UNC1/4-20 standard tripod interface, M3 thread interface

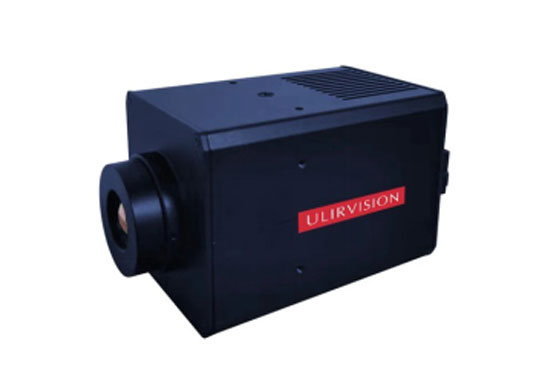

Packing Standard: Thermal imaging camera, integrated cable, warranty card, certificate, case
