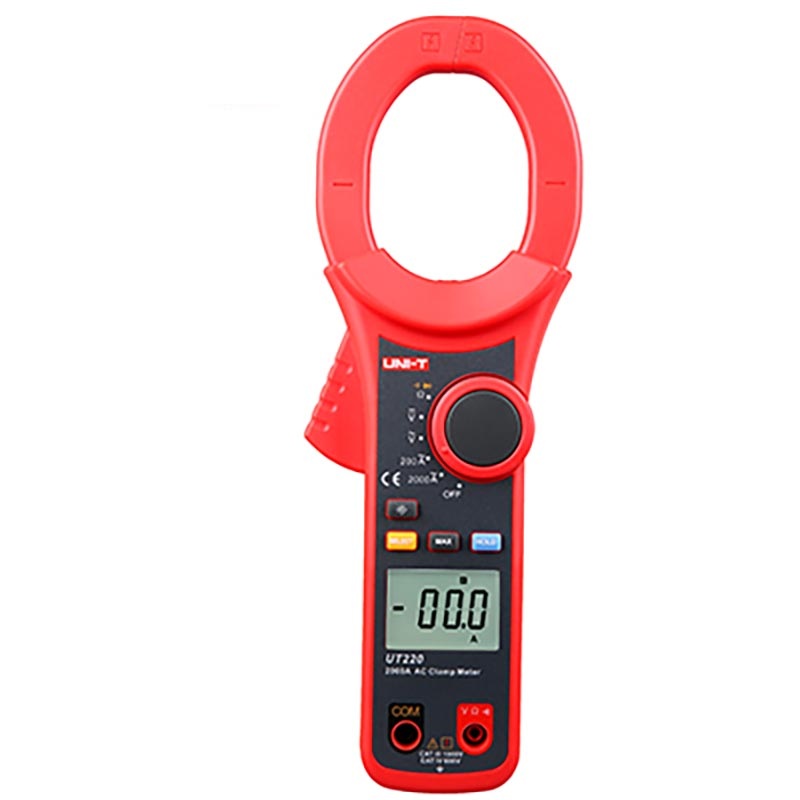

UNI-T UT220 钳形表 (AC 2000A)

AC current (A): 2000A ±(2.5%+5)

AC voltage (V): 750V ±(1.2%+5)

DC voltage (V): 1000V ±(0.8%+1)

Resistance (Ω): 20MΩ ±(1%+2)

Power: 9V battery (6F22)

Display: 43mm x 30mm

Product color: Red and grey

Product net weight: 389g

Product size: 298mm x 107mm x 47mm

Standard accessories: Test leads

Features

Display count: 2000

Auto range: Yes

Jaw opening: 63mm

True RMS: No

Diode test: Yes

Continuity buzzer: Yes

NCV: No

MAX: Yes

Relative mode: No

Zero mode: No

Data hold: Yes

Auto power off: Yes

Flashlight: Yes

LCD backlight: Yes

Analog Bar: No

Low pass filter: No

Input Impedance: >10MΩ

Category ratings: CAT III 1000V, CAT IV 600V

Drop test: 1m

CE certification: Yes
