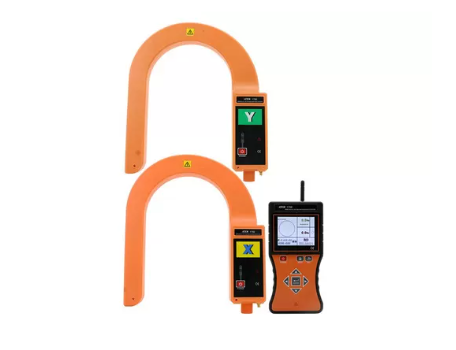

VICTOR 1700 电力测试仪 (20000A, 0.0°～360.0, 35KV/110lV)

Function: phase checking of wireless high-low voltage, current, leakage current, frequency, phase, phase sequence and electricity verification tested; electricity leakage patrol of multi-conductor cable

Power Supply: DC 3.7V chargeable lithium battery, USB charging portal, working continuously for 10h

Transmission Method:; 315MHz 433MHz wireless transmission

Nuclear Phase Distance: 150m

Display Mode: 3.5-inch true color LCD display

Tested Line Diameter: Ф168mm Conductor, or 168mm×245mm bus bar

Range Phase: 0.0°～360.0°; Phase checking voltage level: AC 10V～550kV; Frequency: 45Hz～75Hz; current: 0~20000A

Resolution: 0.1°; 0.1Hz; 10mA

Accuracy: phase: ≤±10° ; frequency: ≤±2Hz; current: 0~6000A, ±3%±5dgt; 6000A~2000A, ±4%±5dgt

Phase Judge: In phase:-30°～30°; out of phase: 90°～150° and 210°～270°

Voice Function: Voice such as in phase, out of phase, X signal normal, Y signal normal, etc.

Size of Insulation Rod: About 5m long after extended; about 1m long after drawn back (5 nodes)

Phase Checking Method: Contact phase checking: When the bare wire voltage is less than 35kV, or less than 110kV with a safety insulation sheath wire, adopt contact phase checking. (operating with an insulation rod)

Noncontact phase checking: When the bare wire voltage is more than 35kV, or more than 110kV with a safety insulation sheath wire, adopt noncontact phase checking. (operating with an insulation rod)

Automatic Shutdown: About 15mins after startup, the instrument will be automatically shut down to reduce battery consumption

Rated Current Detector: 35mA max; Receiver: 300mA max

Instrument Mass
Detector: 496g (including battery)

Receiver: 395g (including battery)

Insulation rod: 1.45kg Total mass: 13.5kg (including box)

Working Humidity And Temperature: -10℃～40℃; below 80%Rh

Storage Humidity And Temperature: -10℃～60℃; below 70%Rh
