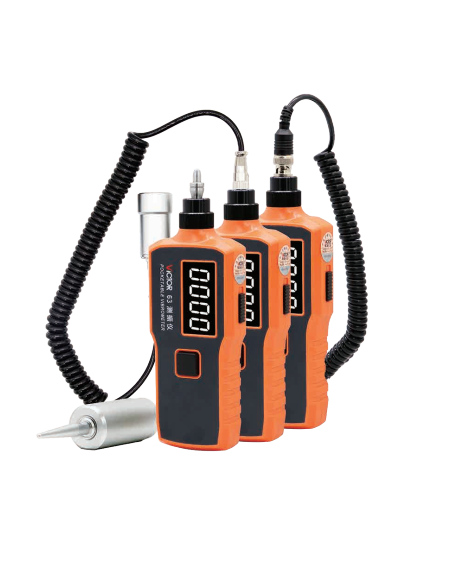

VICTOR 63A Handheld Vibrometer (0–1000 µm, 0–71 mm/s)

Measuring Range

Vibration Displacement (P-P): 0–1000 µm

Vibration Velocity (RMS): 0–71 mm/s

Frequency Response

Velocity: 12 Hz–500 Hz

Displacement: 12 Hz–200 Hz

Basic Functions

Measurement Accuracy: ±10%

Ambient Temperature: 0–40°C

Relative Humidity: ≤80%

Atmospheric Pressure: 75–106 kPa

Other Functions

Low Voltage Indication: If the battery voltage is lower than 5.5 V, a low-voltage warning is displayed.

Data Retention Time: After releasing the measurement key, the data is held for 1 minute.

Indication Fluctuation: The indication fluctuation shall not be greater than one resolution.

Basic Parameters

Power Supply: 9 V

Display Size: 50 × 13 mm

Fuselage Size: 185 × 68 × 30 mm

Fuselage Weight: 160 g (including battery)
