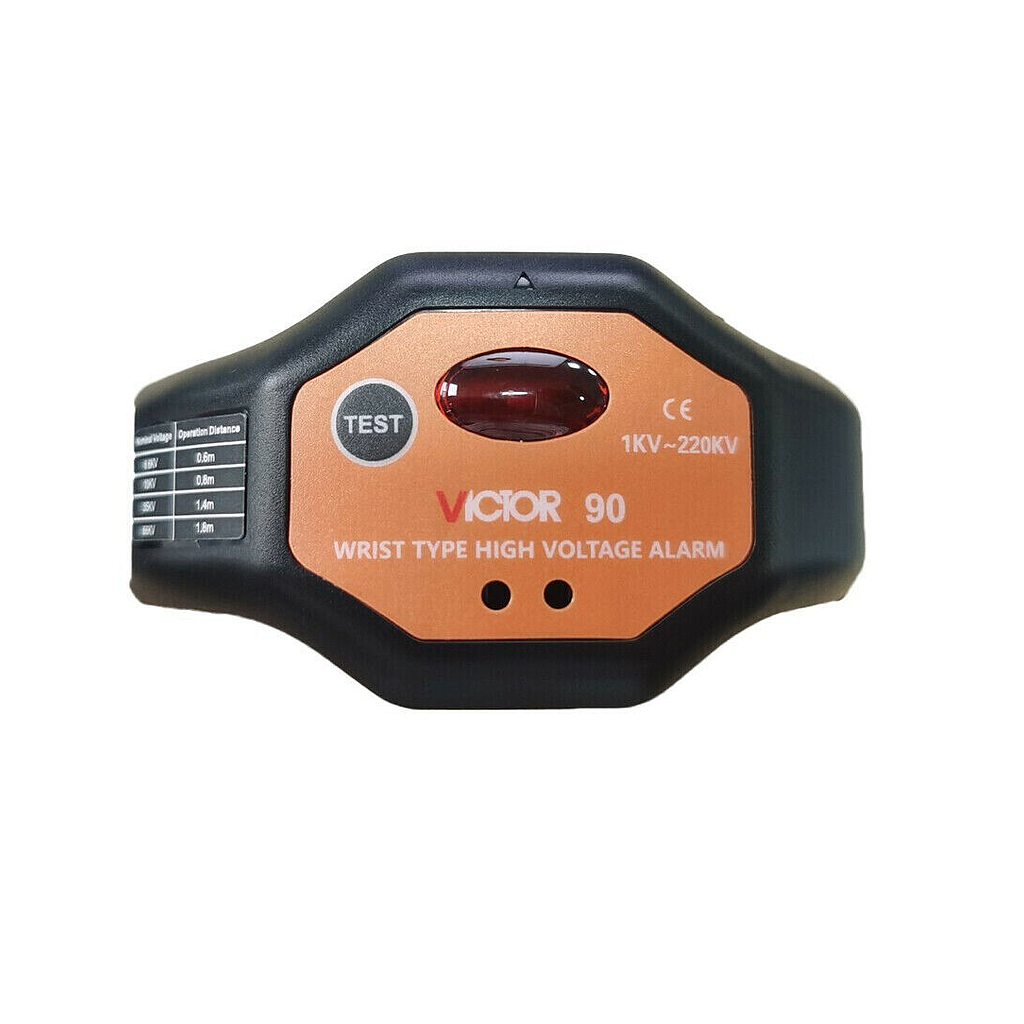

VICTOR 90 高压检测仪 (1KV~110kV)

Voltage level: 1KV/6.6kV/10kV/35kV/66kV/110kV

Features: High voltage alarm

Alarm voltage range: 1kV～220kV

Alarm distance error: ±10cm (23℃±1℃, 80%Rh, under reference conditions)

Working frequency: 50Hz/60Hz

Test method: Contactless

Detection mode: Auto trigger

Battery Life

Continuous work (acousto-optic alarm): about 24 hours

Standby time: about 12 months

Alarm method

Indicator light: LED light visible under 8000XL visible light

Buzzer: 60dB (distance 60CM)

Protection level: IP54

Insulation test: AC3700V/rms (between exposed metal and plastic housing)

Working temperature and humidity: -10℃～40℃; below 80%rh

Storage temperature and humidity: -10℃～60℃; below 70%rh

General characteristics

Power supply: 1 CR1632 button battery

Body weight: 35g

Dimensions: 90mmX40mmX35mm
