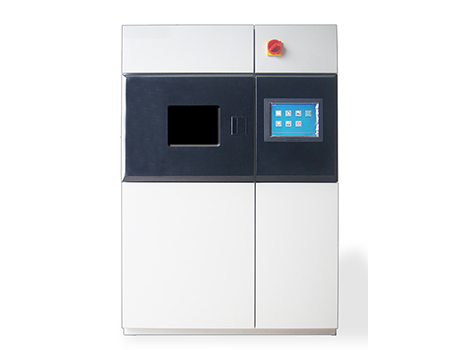

XHinstruments XHF-59A 氙耐光性测试仪

Light source: 3300W air-cooled long-arc xenon lamp

Life of lamp: 1000-1500 hours

Black Panel temperature: 40 - 85 °C

Quantity of specimens: ISO 11 Pcs, AATCC 5 Pcs (double side place specimen)

Humidity range: 10 - 95% RH

Irradiance: 0.60 - 2.01W/m2/420nm (340nm, 300~400nm, 300~800nm is offered on request), Digital set, automatic closed-loop compensation, control and display

Irradiance according to ISO 105B02: 1.1± 0.02W/m2/420nm (42± 2W/m2/300-400nm is offered on request)

Control Accuracy of Irradiance: ± 0.02W/m2/420nm

Photoperiod: ≤1000h

Spray cycle:: ≤1000h

Rotation speed of sample holder: revolution 5r/min, rotation: 180°/rev

Dimension: 1200×800×1720mm

Weight: 213kg

Power Supply: AC 220V, 50Hz

Product Description

Type XHF-59 Xenon Light Fastness Tester is mainly used for test of the color fastness to light and weather fastness of all kinds of nonferrous, coloring textile; it can also be used for testing the color fastness and aging of painting, pigment, paint, rubber, plastic, paper and other materials. It has high intelligence, high measurement and control precision, stable performance; and it also has touch screen which is graphic mark displaying,  friendly interface, it also easy to operate.

Test Standards: ISO105-B02/B04/B06 AATCC 16 JIS L0843 ISO 4892-2

Product Features:

1. Using 3300W long arc xenon lamp, truly simulste daylight spectrum;

2. Adopt high transmittance filter combination, using 95% of the transmittance of the filter and the filter cylinder, to achieve the same irradiance optical requirements of low power consumption, makes the instrument more energy saving and environmental protection

3. Automatic compensating system (PATENT) control the Xenon Lamp Power.

4. Large touch screen, indicate the condition of chamber at real-time, be able to presetting irradiance, temperature (BPT or BST, chamber), humidity and plot dynamic curve of them. The operator simply selects the required test module and test standards; English user interface, diagram indicate condition of chamber, easy to use.

5. PLC control, powerful program and storage property, save the parameters when interrupt of power supply.

 6. Custom program capability and storage for additional user-defined tests.

7. Built-in diagnostics and warnings, automatic prompt when lamp or optical filters require changing. Multi-position sensor to supervise working condition, temperature, humidity, fan, xenon lamp, and door to chamber, it makes device work properly and reliably.

8. Adopt (PATENT) military transmission technology in order to prevent electronic parts aging because of wireless transmission.

9. A test can be 1000 hours of continuous operation of quality assurance.

10. Ultrasonic humidication system.

11. Water Spray system for weathering tests.

12. Intergrated water reservoir for storage of ultra-pure water, automatically refill when connected to supply line.

13. Easy access to sample holder, lamp, filter system by the user.

14. Adapter for absorption filter system or non-aging XENCHROME filter system.

15. Selectable turning and non-turning mode.

16. PLC better than microprocessor for programming cycles and end point.

17. Control and display of irradiance

18. Control and display of black panel temperature
