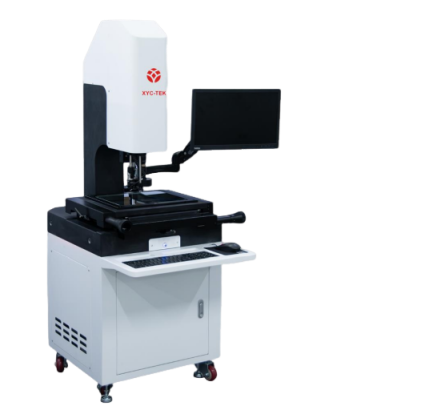

Xyc-tek UNG-MICRO-500 视频测量机 (500*400*200, 3+L/200)

Dimension(mm): 1150*1000*1800

Measure range: 500*400*200

Weight: 400

XY accuracy(um): 3+L/200

Repeatability(um): 3

CCD: 3.2M Pixel Digital Color CCD

Optical Lens: Manual lens 0.7-4.5X(6.5:1)

Surface light: Program control 8 segment LED cold light

Bottom light: LED parallel light

Focus distance: 90mm

Linear scale: 0.5um

Operate mocel: XYZ manual control
