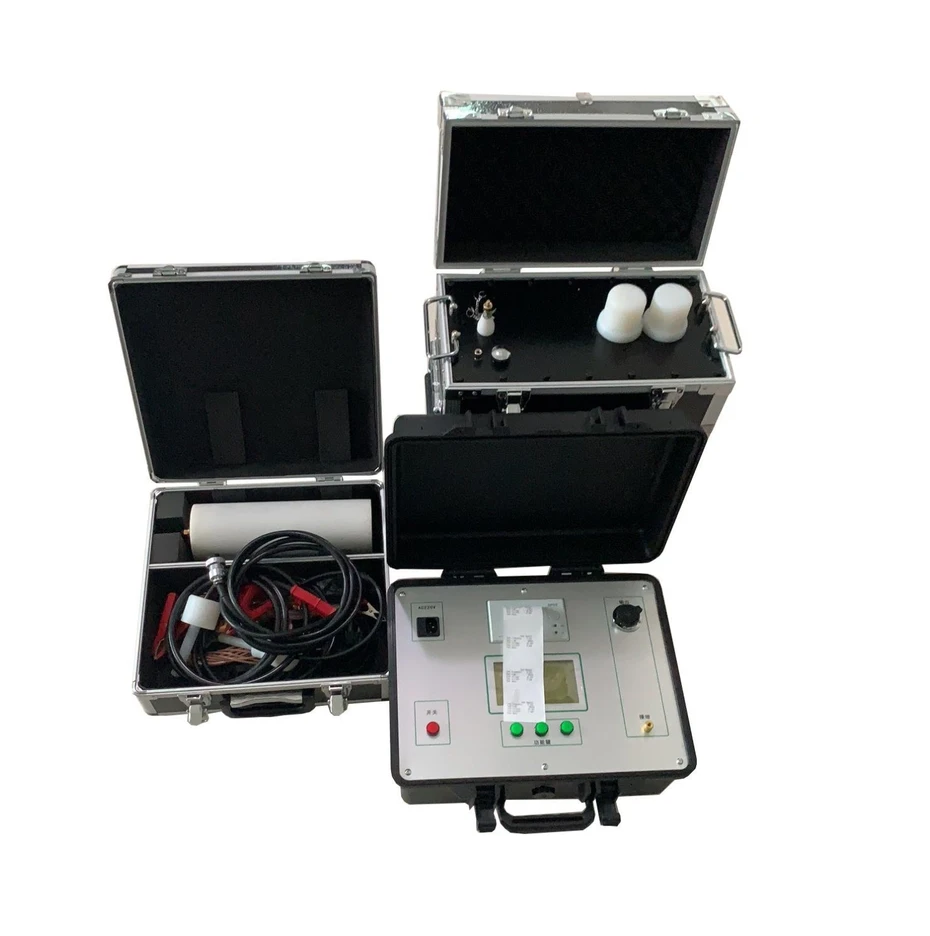

XZH Test XHDP-50 Cable Hipot Tester Vlf (50kV / 30mA)

Rated voltage/current: 50kV / 30mA (Peak)

Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

Measurement accuracy: ±3%

Positive and negative voltage peak error: ≤3%

Voltage waveform distortion: ≤5%

Load carrying capacity:

• 0.1Hz ≤1.1µF

• 0.05Hz ≤2.2µF

• 0.02Hz ≤5.5µF

Power fuse tube: 15A

Power supply: AC 220V ±5%, 50Hz

Use condition: indoor and outdoor; temperature: -10°C ~ +40°C

Humidity: ≤85% RH

Product structure and weight:

• Controller: 4kg

• Booster: 50kg
