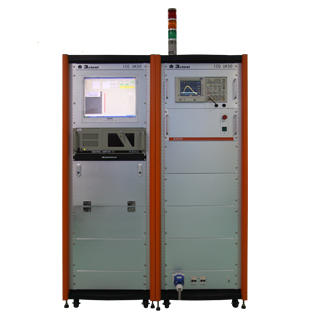

3ctest ICG UK50 雷电浪涌自动测试系统 (0.2 ~ 2000V; 3A~2000A)

- Technical parameters:

Input mains: AC 220V  5KVA

Output waveform: Current waveform: 10(-10%﹢100%)μs/1000 (±10%)μs

Optional waveform: 8(±10%)/20(±10%)μs

Charging voltage: 0.2~2000V

Current peak: 3A~2000A

Output peak resolution: ±5%

Number of test : 1~99 adjustable

Interval time: 1~99s adjustable

Single recycle duration: 7s+ test duration

Control mode: Automatic continuous test or manual single test

DUT polarity judgment: Polarity can be identified automatically

- General data:

Power supply: AC220V ± 10%,50/60Hz

Temperature: 10-40℃,35%-85%RH(no condensation)

Dimension: 1200×700×1800mm

Weight: Approx. 500kg

- Technical parameters:

Surge pulse: IEC 61051-1

Rise time: 10μs-10%﹢100%

Duration: 1000μs±10%

First measurement range:

15A± 10% @1kV

30A± 10% @2kV

Second measurement range:

200A± 10% @1kV

400A± 10% @2kV

Third measurement range:

500A± 10% @1kV

1000A± 10% @2kV

Fourth measurement range:

100A± 10% @1kV

2000A± 10% @2kV
