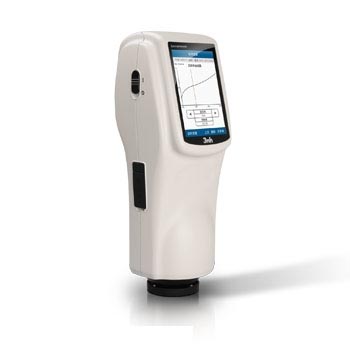

3nh NS800 分光色差仪 (400~700nm; 10nm)

Integrating Sphere Size: Φ58mm

Light Source: combined LED sources

Spectrophotometric Mode: Concave Grating

Sensor: Silicon photodiode array

Wavelength Range: 400~700nm

Wavelength Interval: 10nm

Measured Reflectance Range: 0-200%

Measuring Aperture: Φ8mm

Dimension: L*W*H=90*77*230mm

Weight: 600g

Battery: Li-ion battery. 5000 times within 8 hours

Lamp Life: 5 years, more than 1.6 million measurements

Display Screen: TFT 3.5inch, Capacitive Touch Screen

Interface: USB/RS-232

Data Memory: 1000 Standards, 15000 Samples

Operating Temperature:  0~40℃(32~104°F)

Storage temperature: -20~50℃(-4~122°F)

Standard Accessory: Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory: Micro Printer, Universal Test Compon
