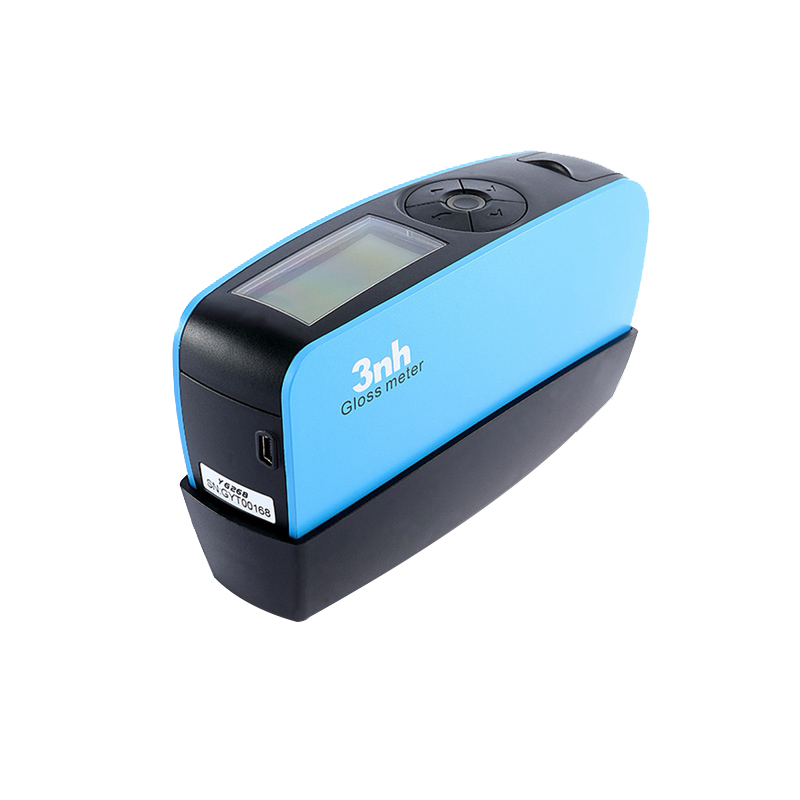

3nh YG268 Tri-angle Gloss Meter (20°; 60°; 85°)

Measuring Angle: 20° 60°85°

Measuring Area

- 20°: 0-2000GU

- 60°: 0-1000GU

- 85°: 0-160GU

Division Value: 0.1GU

Measuring Modes: Basic mode; Statistic mode; Continuous mode; QC mode

Measuring Time: 0.5S

Repeatability: 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU

Accurate: Conform with JJG696 first grade requirements of gloss meter

Auto Power-off Time: Within 30s-120s

Long-time Calibration: Automatically check and made the calibration

Language: Chinese & English

Storage: 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)

Display: 2.3 inch white and black screen

Size: 160*52*84mm

Weight: About 300g

Power Supply: 1pc dry-cell battery(can measure 10000 times) or use USB Charge

Interface: USB & Bluetooth 2.1 version

PC Software: GQC6 QC software can printing testing report and with more extended functions

Operation Temperature Range: 0-40℃(32-104° F)

Storage Temperature Range: -20-50℃(-4-122° F)

Humidity Range: < 85% RH, without condensation

Standard Accessories: USB cable, user manual, calibration plate, QC software

Optional Accessories: Miniature printer

Detail

Standard Accessories: USB cable, user manual, calibration plate, QC software

Optional Accessories: Miniature printer
