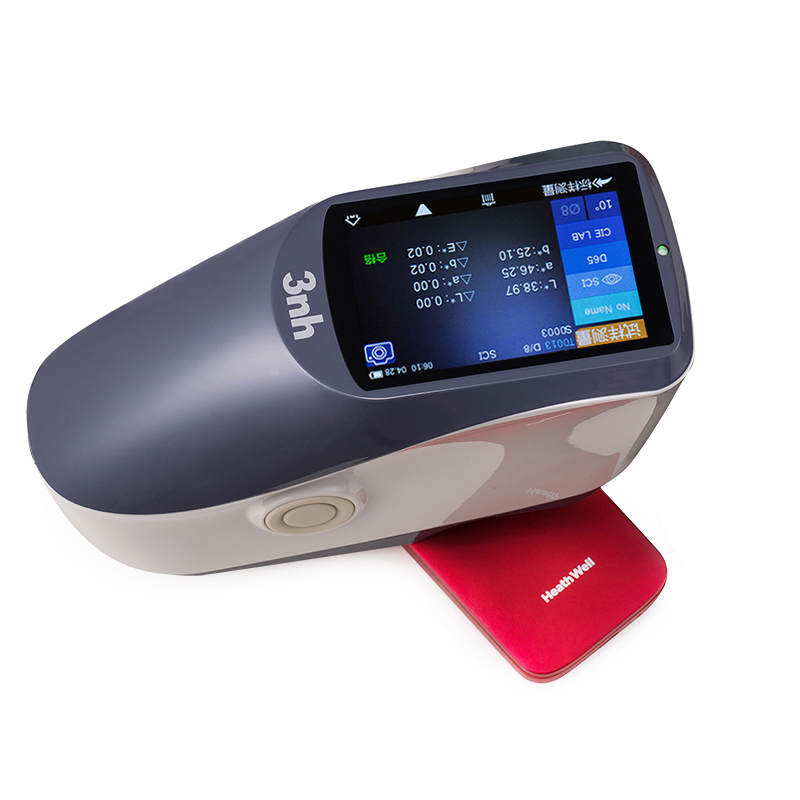

3nh YS4560 Spectrophotometer (400-700nm; 10nm)

Integrating Sphere Size: Φ48mm

Light Source: Combined LED Light, UV Light

Spectrophotometric Mode: Concave Grating

Detector: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 400~700nm

Wavelength Pitch: 10nm

Half Bandwidth: 10nm

Reflectance Range: 0~200%

Measuring Aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm

Power source: Li-ion battery. 5000 measurements within 8 hours

Dimension: 184*77*105mm

Weight: About 600g

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB, Bluetooth 4.0

Data Storage: Standard 1000 Pcs, Sample 30000 Pcs

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment:  -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover

Optional Accessory: Micro Printer, Powder Test Box, Universal test components, Locating Plate
