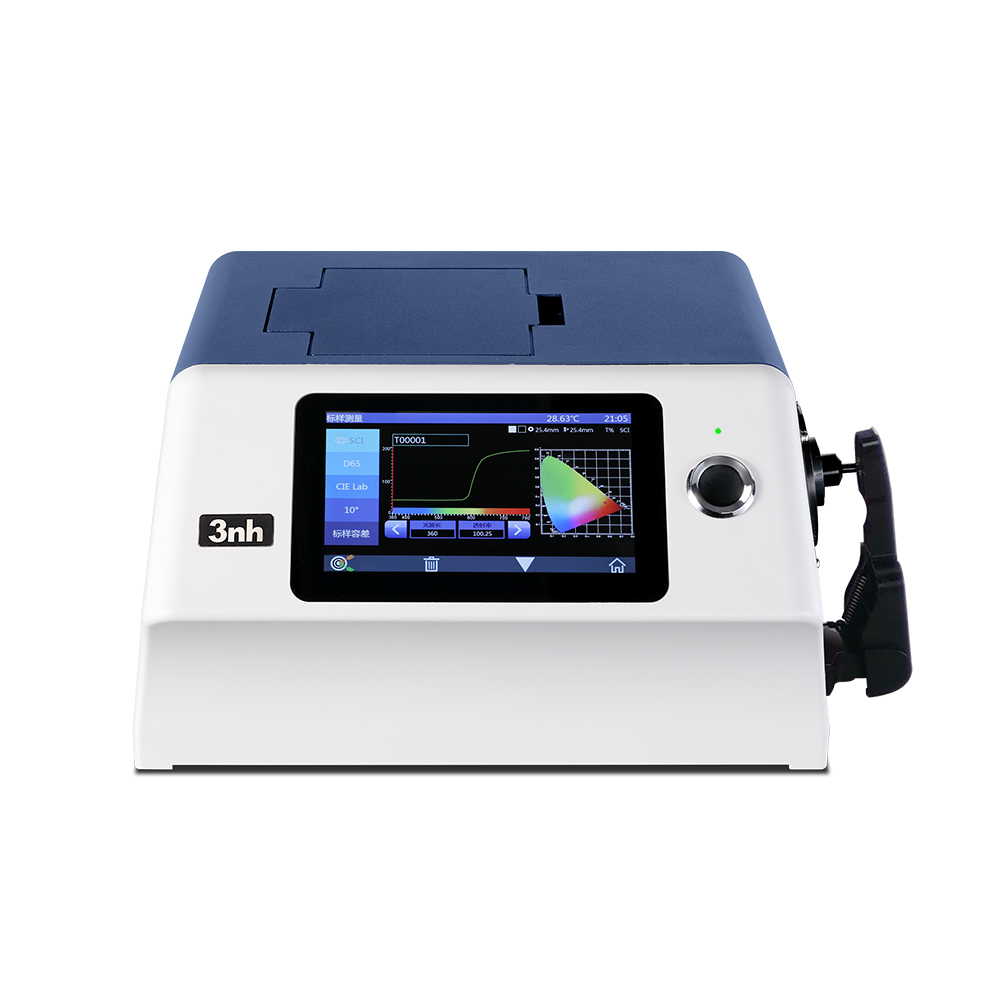

3nh YS6002 Benchtop Color Haze Meter (360~780nm; 10nm)

Integrating Sphere Size: Φ154mm

Light Source: 360~780nm Combined LED Lamp

Spectrophotometric Mode: Concave Grating

Detector: 256 Image Element Double Array CMOS Image Sensor

Wavelength Range: 360~780nm

Wavelength Pitch: 10nm

Half Bandwidth: 10nm

Reflectance Range: 0~200%

Measuring Aperture: Transmittance: Φ25.4mm

Power: DC 24V,3A Power Adapter

Dimension: 370X300X200mm(L*W*H)

Weight: About 9.6kg

Illuminant Life Span: 5 years, more than 3 million times measurements

Displayed Data: 7-inch TFT Capacitive Touch Screen

Data Port: USB,Printing Port

Data Storage: Standard 5000 Pcs, Sample 50000 Pcs

Operating Environment: 0~40℃(32~104°F)

Storage Environment:  -20~50℃(-4~122°F)

Detail

Standard Accessory: Power Adapter, User Manual, QC software(please download from website), USB cable, reflectance white and black board, transmittance black board, 25.4mm aperture, transmissive test component

Optional Accessory: Miniature- printer
