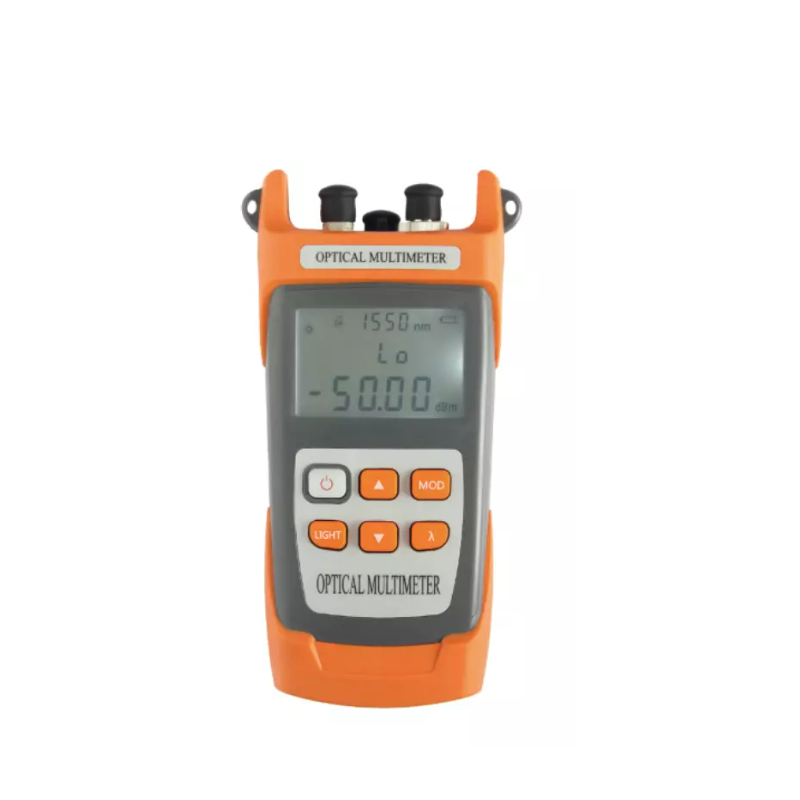

3S Telecom FOLT-5026A 光纤损耗测试仪 (800-1700nm, -50~+26dBm)

Wavelength: 800-1700nm

Fiber Connector: 2.5mm universal connector (suitable for FC SC ST)

Type of Detector: InGaAs

Measurement Range: -50~+26dBm

Uncertainty: ±5%

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 (nm)

Display Resolution: Linear display: 0.1%, logarithmic display: 0.01 dBm

Frequency Identification: 270Hz / 330Hz / 1000Hz / 2000Hz

Data Storage: 1,000

Visual Fault Locator (VFL)

Working Wavelength: 650nm

Output Power: 10mW

Mode: CW / 1Hz / 2Hz

Connector Port: 2.5mm universal connector (suitable for FC SC ST)

Optical Light Source (OLS)

Wavelength: 314955: PON 1310/1490/1550nm±20

Type of Laser: FP-LD

Spectral Width: 5nm

Output Power: ≤-5dBm

Stability: ±0.05dB / 30min

Mode: CW / 270Hz / 330Hz / 1000Hz / 2000Hz

Power Regulation: 0 ~ 6dB, 1dB / step

Connector Port: FC/PC

General Information

Power Supply: 3pcs AA Battery

Automatic Shutdown Time: 10min

Operating Temperature: -10~+50°C

Storage Temperature: -40~+70°C

Relative Humidity: 0 ~ 95% No Condensing

Instrument size: 186 x 100 x 50mm

Weight: 240g
