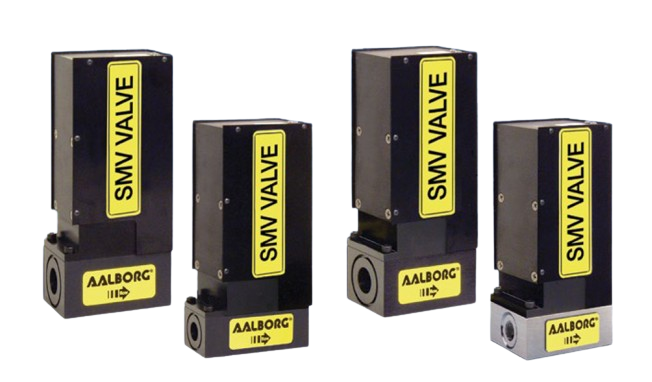

Aalborg SMV20-AVD2 SMV Stepping Motor Valve (200 [ml/min], 0.336)

Maximum flow rates[L/min]: Air: 200; Water: 5.6

Cv: 0.336

Connections: 3/8" compression

Material: Aluminum

Electrical connections: 9-pin “D”-connector, located at the side of the valve

Power input: 12Vdc @ 800 mA, or +24 Vdc @ 600 mA, protected by a 1600mA resettable fuse

Directional control signal: 12Vdc CMOS compatible logic level signal (10K input  impedance). (Logic High >= 7.5 Vdc, Low <2.3 Vdc)

Response time: 100ms time constant

Pressure drop at max. flow: 700 to 1000) mbars 10 to 15 psid

Maximum operating pressure: 500 psig  (35 bars)

Maximum differential pressure: 40 psig (2.7 bars)

Gas & ambient temperature: 32 °F to 122 °F (0 °C to 50 °C)
