Aaronia 8060 V5 ODB 室外实时频谱仪 (9kHz ~ 6GHz)

  • 制造商: AARONIA
    Model: 8060 V5 ODB
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267

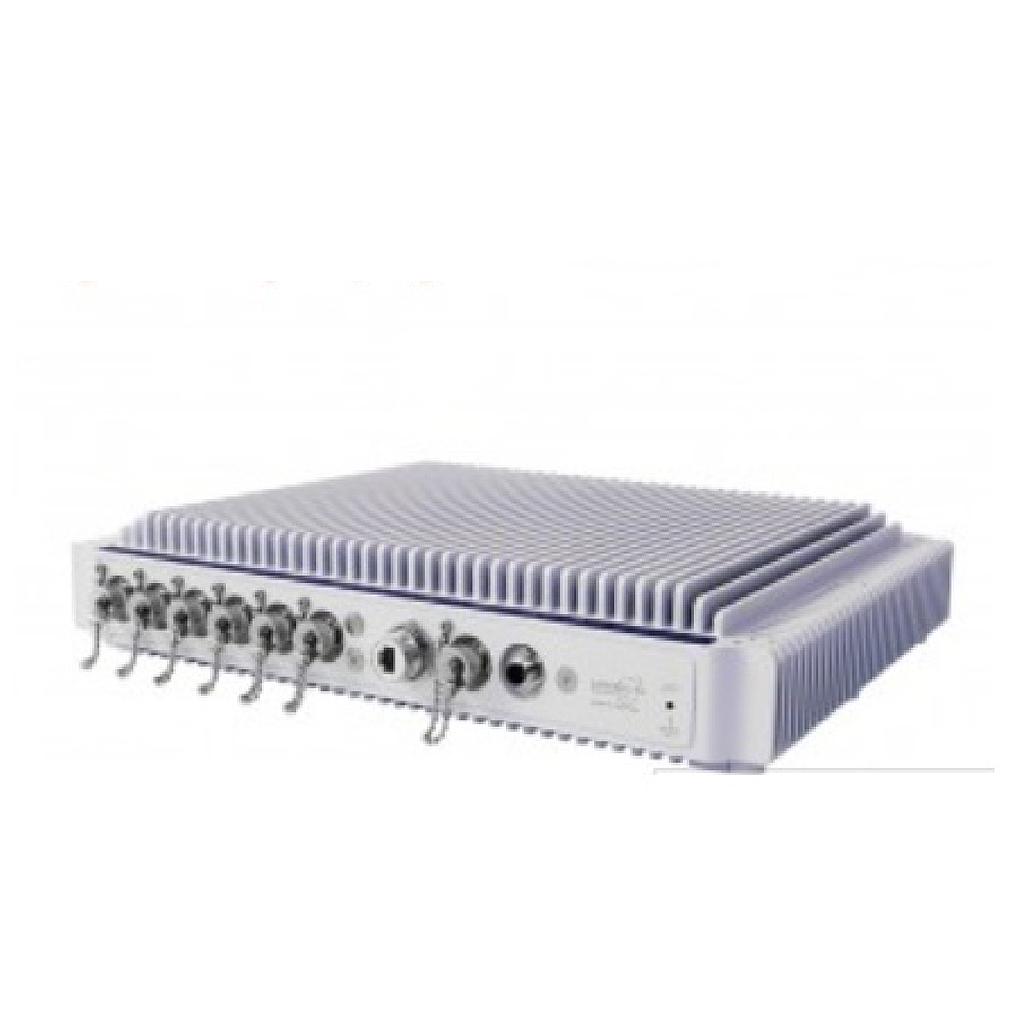

Outdoor Real-Time Remote Spectrum Analyzer
Frequency Range (min): 9kHz (optional 1Hz with Option 003)
Frequency Rance (max): 6GHz
Real-Time Bandwidth: 44MHz (opt. 88MHz)
Minimum Event Duration for 100% POI : <1µS
Max. Power at RF input (50 Ohm) +20dBm (+33dBm*)
Displayed Average Noise Level (internal pre-amp on) typ. -150dBm/Hz
Amplitude accuracy (typ.) typ. +/- 1,5dB
RF input 50 Ohm (SMA-connector)
RBW (resolution bandwidth) 1Hz to 3MHz
VBW (video bandwidth) 1Hz to 3MHz
Demodulator AM, FM
Measurement Units dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²
Detector Min, Max, AVG, Peak (QPeak in preparation)
Attenuator range 45dB (0,5dB steps, incl. pre-amp)
Traces ACT, AVG, MAX, MIN
Video RAM 32 MB
SDRAM 128 MB
Dimensions 450x350x80mm
Weight 12Kg
Power Supply AC Input: 100-240V, 50-60Hz - DC Output: 5,6V,

Details

Download datasheet
