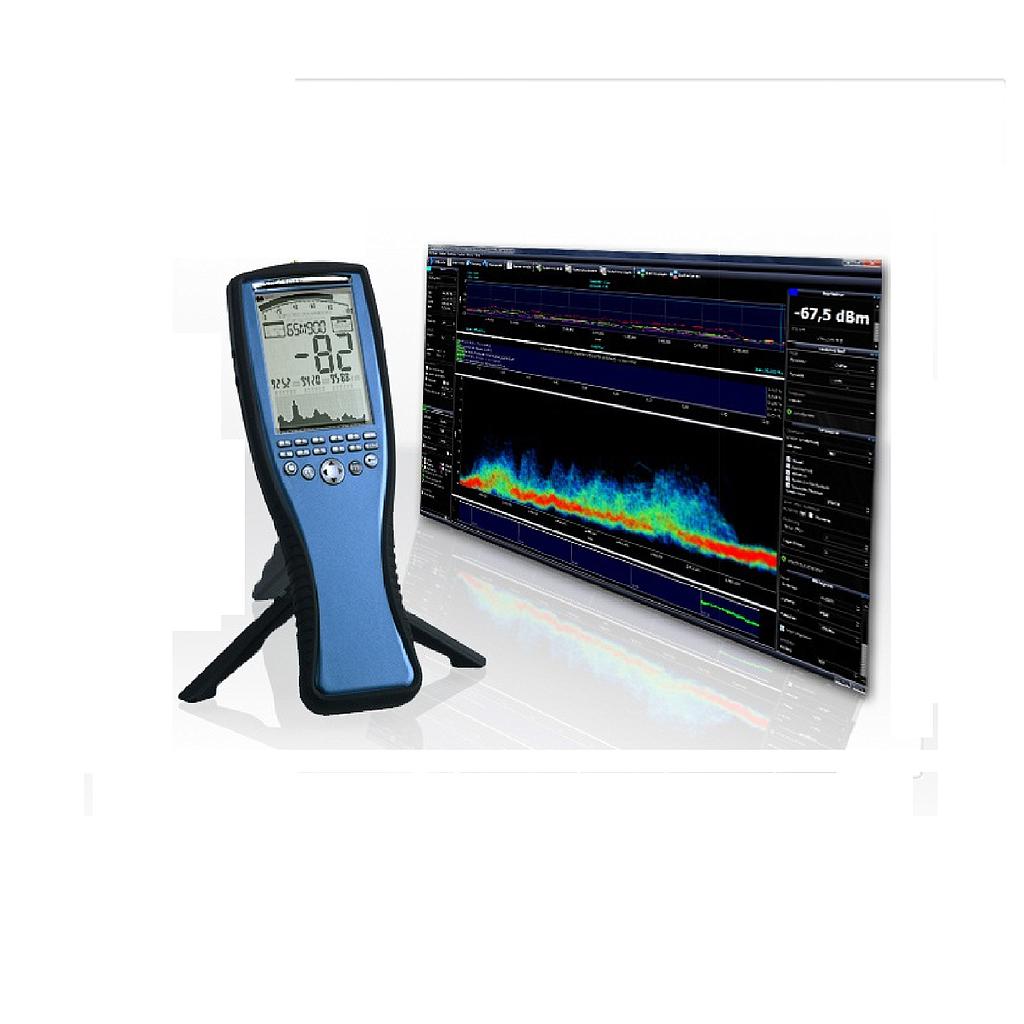

Aaronia HF-60100 V4 高端EMC频谱分析仪 (10Mhz – 9.4GHz, 高灵敏度)

  • Frequency range: 1MHz to 9,4GHz
  • DANL: -155dBm(1Hz)
  • DANL with Preamp: -170dBm(1Hz)
  • Max. power: +20dBm (opt. +40dBm)
  • Lowest sample time: 1mS
  • Resolution (RBW): 200Hz to 50MHz
  • EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
  • Units: dBm, dBµV, V/m, A/m, W/m²
    (dBµV/m, W/cm² etc. via PC software)
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM, PM, GSM
  • Input: 50 Ohm SMA RF-input (f)
  • Accuracy: +/- 1dB (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 430gr
  • Warranty: 10 years



Highlights:

  • WORLD RECORD in hand-held sensitivity
  • Exposure limit calculation and display according to DIN/VDE 0848
  • Up to 100x faster sample time as V3 units
  • Up to 80dB higher sensitivity as V3 units
  • Low noise preamplifier (option)
  • GSM training sequence (color code) tracker
  • On screen Provider Display (Option)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Data Logger (64K), expandable to 1MB (Option 001)
  • Enhanced and much sharper LCD display (compared to V3 units)
  • Simultaneously displays frequency and signal strength
  • Real-time remote control via USB
  • Large, high resolution multifunction LCD
  • Vector (I/Q) measurement
  • DECT & TimeSlot analyzer
  • Real-time Peak Power Detector (option)
  • Hold function
  • Included EMC directional antenna HyperLOG 60100
  • Free MAC OS, Linux and Windows software

Initiates file download Datasheet (pdf)

Details
  • Frequency range: 1MHz to 9,4GHz
  • DANL: -155dBm(1Hz)
  • DANL with Preamp: -170dBm(1Hz)
  • Max. power: +20dBm (opt. +40dBm)
  • Lowest sample time: 1mS
  • Resolution (RBW): 200Hz to 50MHz
  • EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
  • Units: dBm, dBµV, V/m, A/m, W/m²
    (dBµV/m, W/cm² etc. via PC software)
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM, PM, GSM
  • Input: 50 Ohm SMA RF-input (f)
  • Accuracy: +/- 1dB (typ.)
  • Interface: USB 2.0/1.1
  • Dimensions (L/W/D): 250x86x27 mm
  • Weight: 430gr
  • Warranty: 10 years



Highlights:

  • WORLD RECORD in hand-held sensitivity
  • Exposure limit calculation and display according to DIN/VDE 0848
  • Up to 100x faster sample time as V3 units
  • Up to 80dB higher sensitivity as V3 units
  • Low noise preamplifier (option)
  • GSM training sequence (color code) tracker
  • On screen Provider Display (Option)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Data Logger (64K), expandable to 1MB (Option 001)
  • Enhanced and much sharper LCD display (compared to V3 units)
  • Simultaneously displays frequency and signal strength
  • Real-time remote control via USB
  • Large, high resolution multifunction LCD
  • Vector (I/Q) measurement
  • DECT & TimeSlot analyzer
  • Real-time Peak Power Detector (option)
  • Hold function
  • Included EMC directional antenna HyperLOG 60100
  • Free MAC OS, Linux and Windows software
