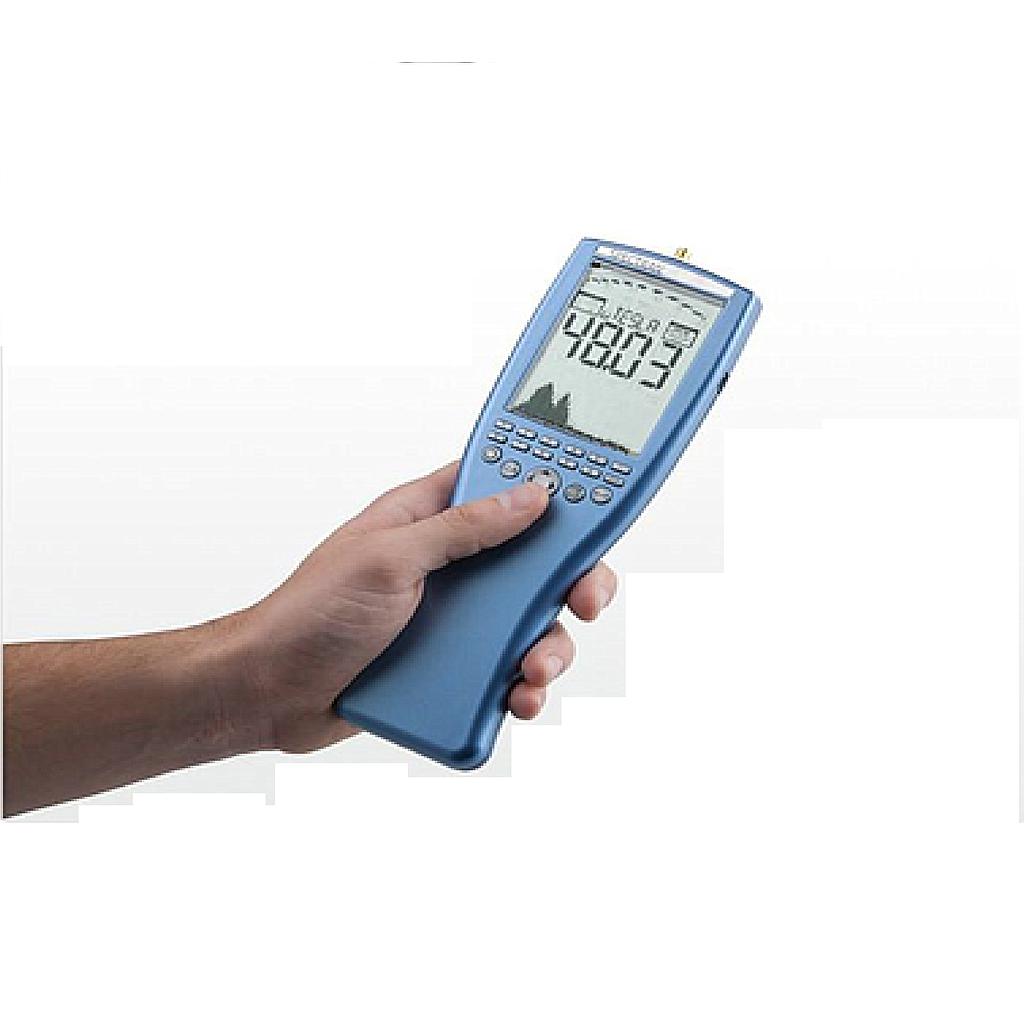

Aaronia NF-5030S 电网分析仪/ 光谱/ 便携式(1Hz至1MHz / 20MHz / 30MHz)

Technical data

Frequency range: 1Hz to 1MHz (20/30MHz with Option 008/010)

Magnetic field (Tesla): 100pT to 20mT (typ. at 50Hz) expandable up to an amount of Tesla with PBS1

Magnetic field (Gauss): 1µG to 200G (typ. at 50Hz)

Electric field: 1V/m to 50kV/m (typ. at 50Hz)

Analog Input: 200nV to 200mV (typ.)

Incl. Option 005 (12Bit Dual DDC Frequency Filter)

Resolution (RBW): 0,3Hz to 1MHz (1-3-10 step)

Units: V, V/m, T, G, A/m

Detectors: RMS, Min/Max

Demodulator: AM, FM

Input: High impedance SMA input (f)

Audio: Internal speaker with volume control and 2,5mm jack

Accuracy: 3% (typ.)

Interface: USB 2.0/1.1

Dimensions (L/W/D): 250x86x27 mm

Weight: 420gr
