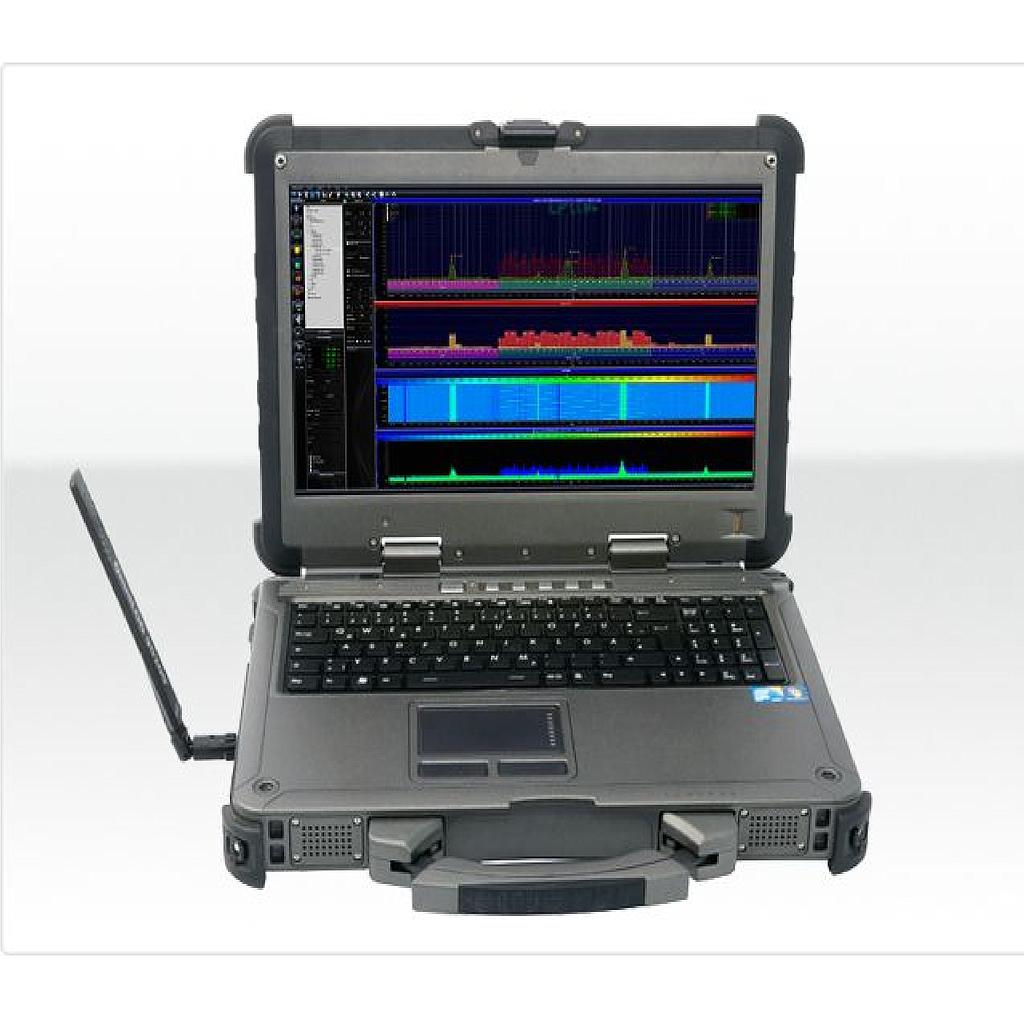

Aaronia NF-XFR PRO 频谱分析仪(1Hz~20MHz)


Frequency Range (min): 1Hz
Frequency Rance (max): 20MHz (optional 30MHz)
Frequency range: 1Hz to 20MHz (optional
30MHz)
Typ. accuracy: 3%
65 MSPS
RBW: 0,3Hz (min) to 1MHz (max)
Demodulation: AM, FM
Typ. range: 200nV to 200mV* / -150dBm (Hz)
Fast FFT Spectrum Display
Fastest Sampletime: 10ms
High Power DSP (Signal processor)
True RMS Measurement
Average (AVG) Measurement
Free Software-Updates
Extended measurement range, full ICNIRP
Accurate limit calculation (ICNIRP, BGV B11,
BlmSchV, etc.)
Fast ZERO-SPAN Sweep
HOLD Mode
Intel i7-620M (4M Cache, 2,66GHz, max. 3,33GHz with Intel
Turbo Boost Technology)
15,6“ TFT-LCD (Full-HD 1080p) with Multi-touch screen, sunlight
readable (800 Nits Quadra-Clear)
Windows 7 64 Bit Professional
8GB RAM
nVidia GT 330M 1GB DDR3 graphic card
320GB SATA HDD
Intelligent lithium ion battery (8700mAh)
Membrane keyboard with integrated numeric keypad and
LED backlight

Detail
