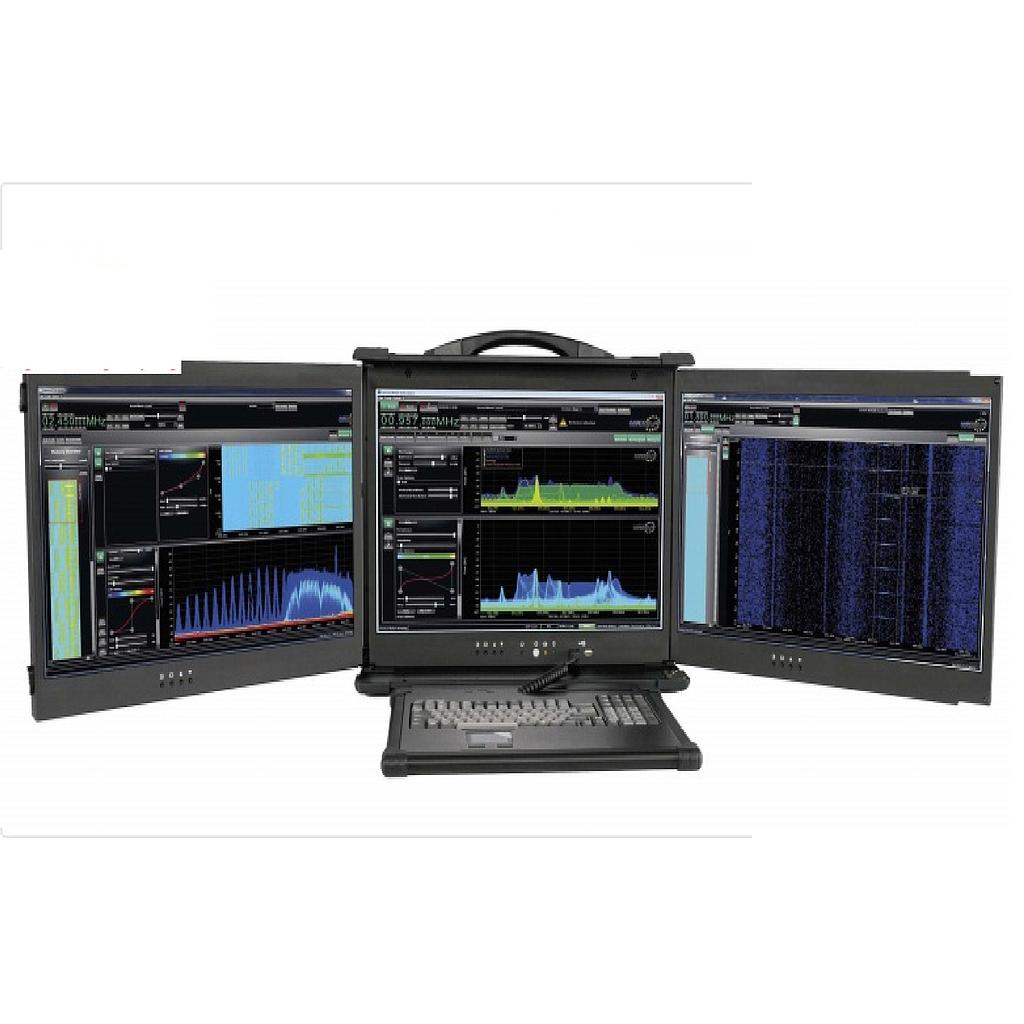

Aaronia V5 RF Command Center 实时室外频谱分析仪(9kHz~20GHz)


Frequency Range (min): 9kHz (optional 1Hz)
Frequency Rance (max): 20GHz
Real-Time Bandwidth: 88MHz (opt. 160/175MHz)
Minimum Event Duration for 100% POI : <1µS
Max. Power at RF input (50 Ohm) +20dBm (+33dBm*)
Displayed Average Noise Level (internal pre-amp on) typ. -150dBm/Hz
Amplitude accuracy (typ.) typ. +/- 1,5dB
RF input 50 Ohm (SMA-connector)
RBW (resolution bandwidth) 1Hz to 3MHz
VBW (video bandwidth) 1Hz to 3MHz
Demodulator AM, FM
Measurement Units dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²
Detector Min, Max, AVG, Peak (QPeak in preparation)
Attenuator range 45dB (0,5dB steps, incl. pre-amp)
Traces ACT, AVG, MAX, MIN
Video RAM 64 MB
SDRAM 256 MB
CPU Intel i7 3,4GHz, 8MB Cache
RAM 16 GB
HDD 120GB SSD (operation system), 2TB HDD (storage), optional expandable
Operation System Windows 7
Display 3x 21,5“ Full-HD 1080p, sunlight readable, anti reflection tempered strengthen glass
Graphic Card GeForce GTX, latest generation
Connectors 2x USB 3.0, 2x USB 2.0, Mouse, Keypad,
DVI, VGA, HDMI, Power socket
Dimensions 536 x 394 x 300mm (monitors closed)
Weight 30kg
Power Supply AC Input: Silent 580W, 100-240V, 50-60Hz
