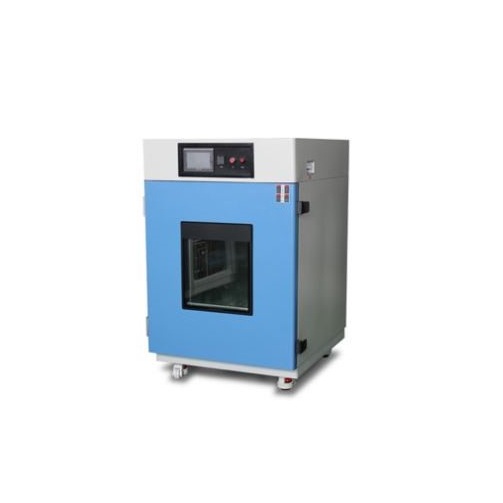

ACE AMT30 Bench Top Test Chamber (-40℃~+150℃)

Temperature range: -40℃~+150℃

Temperature fluctuation/deviation: ≤±0.5℃ / ≤±2℃ (load free)

Temperature deviation: -40℃~+100℃≤2℃; +100℃~+150℃≤3℃

Ramp up / down rate: -40~+150℃ ≤80min; +20~-40℃ ≤60min (load free)

Internal / External dimensions: 250Dx300Wx400H(mm); 997Dx460Wx800H(mm)

Detail

A.Application

Used for reliability test and environmental test of dust-free material, electronic or electric product or component, military product. Conform to National Standard and Military Standard.


B.Standards meet

GB2423•1-89

GB2423•2-89

GB/T5170.2-1996


C.Working environment

Ambient temperature: 10℃~35℃

Relative humidity: ≤85%RH

Power source: AC220±10%V, 50Hz, single phase+ GND

Power: 2KW


D.Features

1.Material: two-sided galvanized steel plate, and SUS304 stainless steel plate.

2.Heat-insulating material: hard polyurethane foam and glass fiber, with enough thickness.

3.Parts connection: weld of seamless tungsten electrode arc, with watertight treatment.

4.Air adjustment system: forced circulation with centrifugal fan, heat with nichrome heater and cooled with compressor.

5.Refrigeration system: world famous brand totally closed compressor, eco-friendly refrigerant R404a.

6.Controller: TEMP880 from Korea, touch screen displayer, resolution 0.1℃, 0.1%RH, 0.1min.;

Running with constant value or program; Displays data of setting temp., actual temp., total running time, running time of segment, residual time of segment, heating condition, calendar time; Automatically choose working status of compressor according to test terms.

7.Protection device: over-temperature for specimen, overheating for motor, overpressure, overheating and over-current for compressor; earth leakage protective device.


E.PERFORMANCE


Bench top test chamber


F.Standard configuration

1.Communication interface: USB, RS232;

2.Φ50mm test hole with cover and soft plug;

3.Shelf 2 sets;

4.Power line, 1 piece, 5m length.

5.Files: packing list, user manual, certificate of quality, warranty card.
