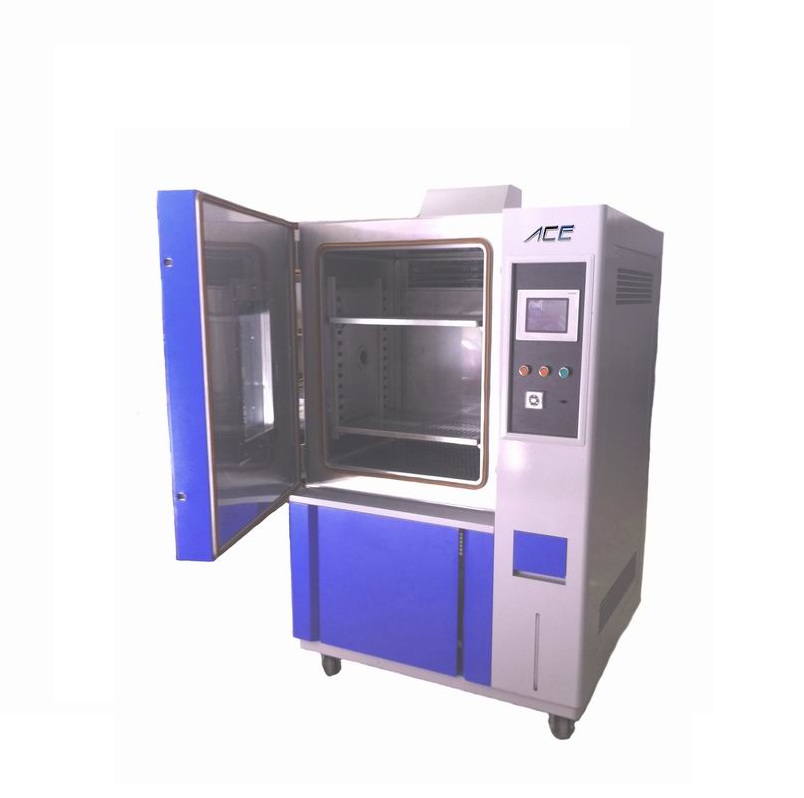

ACE ATH-800B Temperature & Humidity Test Chamber (15kW)
制造商: ACE Model: ATH-800B 来源: China 保障: 12 Month - 联系
Workroom Dimensions(cm): 80*100*100
Exterior Dimensions(cm): 147*152*231.5
Power: 15.0(KW)
Temperature Range: A: -20°C~150°C, B: -40°C~150°C, C: -60°C~150°C, D: -70°C~150°C
Humidity Range: 20~98% R.H
Fluctuation/Uniformity: ≤± 0.5°C/ ≤± 2°C
Humidity Deviation: +2, -3.0% R.H
Temp-Ramp up(Heating) Time: 1.0~3.0°C/min
Temp-Ramp Down(Cooling) Time: 0.7~1.0°C/min
Power Supply: 220V AC, 50/60Hz, Single Phase, 15A, 6.0Kw
Chamber Environment:
+ Temperature: 5~28°C
+ Humidity: <85%
Accessories: Cable Access, Temp-Humidity Sensors, AC Power Cord, Shelves, Door Sealing, Casters, Wet and dry bulb (Humidity Sensing method), Water Supply: Internal Water Tank, Water Inlet Valve
Temp & Hum Control Range See Graph below
B.STRUCTURE
1.Interior Material: Stainless Steel Plate (SUS#304)
2.Exterior Material: A3 Steel Plate sprayed with special coating
3.Insulation Material:Double-layer, High Temperature resistant and high Intensity seal is applied between the chamber door and chamber body to ensure high performance
4.Heater: Fin Heat Disperse Pipe Stainless Steel-Electric Heater
5.Humidifier: Stainless Steel Heater with Auto Adjust
6.Airflow Cycling System: Unique System for providing uniform airflow
7.Door & Window: Single Door with Observation Window, (Heating cords set around the door to prevent Condensation)
C.REFRIGERATION SYSTEM
1.Compressor Hermetic Compressor - 2HP, Tecumseh
Option B: two compressors;
Option C: two compressors;
Option D: two compressors
2.Refrigerant Type: DuPont Type 404A (Without Fluorine)
3.Condenser: Air Cooled with Fan
4.Evaporator: Fin with several segments –Auto adjustment
D.CONTROLLER PROGRAMMABLE COLOR LCD Model TEMI 800
1.Controller Specifications LCD DISPLAY COLOR TOUCH SCREEN KEY IN
User friendly Color-LCD interactive touch-screen system powerful controller with several Programmable and Fixed Value features such as:
100 Programs and 1200 Segments with Run time of 99H 59M ea. to set up
Temp-Hum profiles per user requirements.
Data Storage and profile recall
Communications: RS485/RS232 - PC Interface
2.Control Panel
a.Lighted Push Button switch for POWER
b.Lighted Push Button for chamber lighting
c.RS232/485 port for PC interface
d.Over Temperature protector – Manually settable
e.Emergency reset switch (EMO)- Optional
E.SAFETY DEVICES
a.Ground protection
b.Three phase Over voltage, Under voltage, Phase loss and Phase Sequence Protection
c.Leakage/Circuit protection
d.Heater and Humidifier heater short-circuit protection
e.Circulation Fan motor overload protection
f.Compressor Overload protection
g.Compressor High Pressure protection
h.Independent over-temperature alarm system
i.Lack of Water protection (Humidification)
j.Circuit breaker
k.Emergency Shut Off Switch (EMO)-Optional
