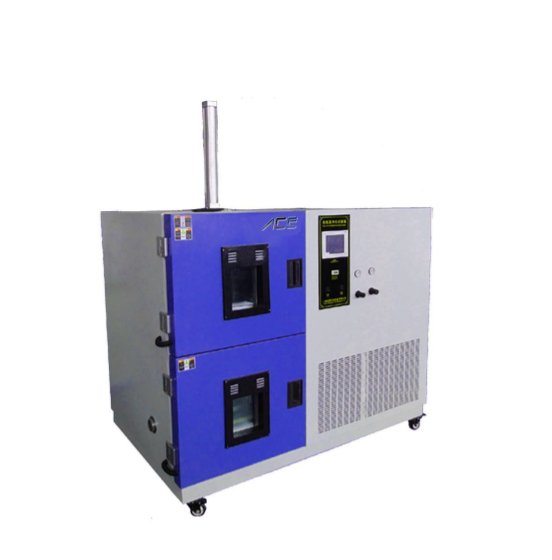

ACE ATS-1000DF 热冲击试验箱 (-70℃~200℃ )

Workroom dimensions (mm): W1300*D1750*H1050

Exterior dimensions (mm): W2200*D2400*H2350

Temperature range: -70℃~200℃

High temperature room: 40 ~ +200℃

Low temperature room: RT ~ -70℃

Temperature fluctuation: ≤±0.5℃ (under constant temperature)

Sample zone(basket) dimensions(mm): W1000*D1450*H750

Preheat room

Upper limit preheat temperature: 200℃

Temperature ramp up rate: 25℃/min (Average of range、unload)

Pre-cool room

Lower limit pre-cool temperature: -70℃

Temperature ramp down rate: 25℃/min（Average of range、unload）

Workroom

Temperature shock range: -40℃～＋125℃

Temperature fluctuation: ≤±0.5℃

Temperature deviation: ≤±1℃

Transform time: ≤5S

Temperature revert time: ≤5min

Capacity: 1225L

Power supply: AC380V,50Hz,3 phase and 4 wire + grounding wire
