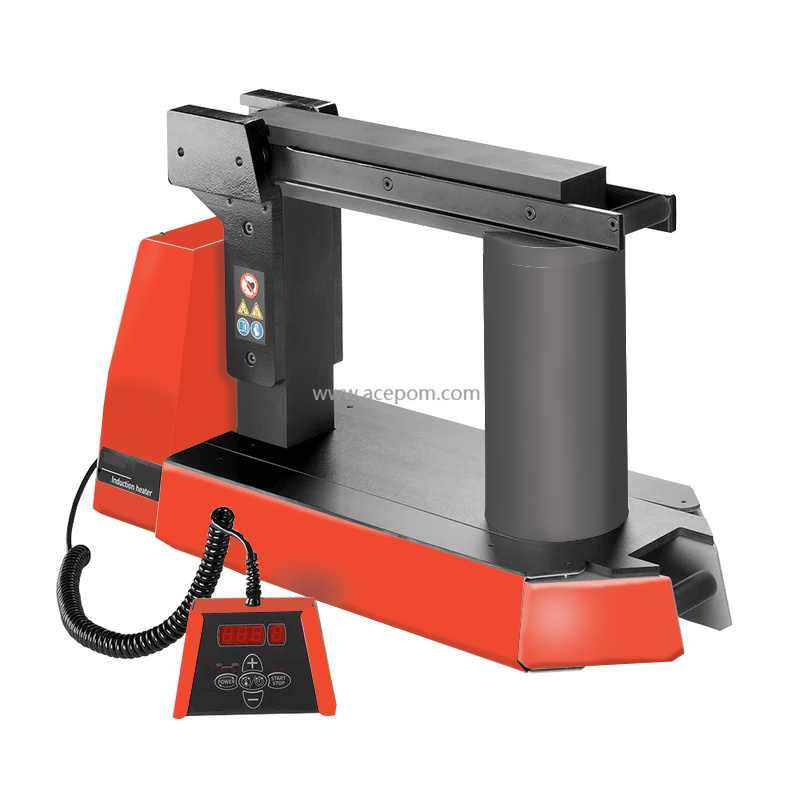

Acepom ACEPOM-AHEATER-220 大型感应轴承加热器 (60 - 600 mm)

m20 performance: 220 kg (480 lbs)

Voltage, V/Hz: ACEPOM-AHEATER-220/50-60Hz

Bearing:

Maximum weight: 300 kg (661.4 lb)

Maximum bore diameter: 60 - 600 mm (2.3 - 23.6 in.)

Temperature control:

Range: 0-250°C (32 - 482 °F)

Magnetic probe: Yes, K-type

Accuracy (electronics): ± 2 °C (± 3.6 °F)

Time control:

Range: 0 - 60 minutes

Accuracy: ± 0.01 sec.

Performance example:

bearing, weight, temperature, time: 23172 CC/W33, 220 kg, 110 °C, 20m

Thermometer mode: Yes

Bearing mode (pre-set at 110 °C/230 °F): Yes

Power reduction: 2-step; 50 - 100%

Demagnetisation according to   norms (automatic): Yes (<2 A/cm)

Can heat sealed bearings: Yes

Can heat pre - greased bearings: Yes

Error guiding codes: Yes

Thermal overload protection: Yes

Maximum magnetic flux: 1.55 T

Control panel: Key board with LED in remote control

Operating area (w × h): 250 × 255 mm (9.8 × 10 in.)

Coil diameter: 140 mm (5.5 in.)

Dimensions (w × d × h): 750 × 290 × 440 mm (29.5 × 11.4 × 17.3 in.)

Total weight, including yokes: 86 kg (189 lbs)

Maximum power consumption: 10.0-11.5 kVA (400-460V)

Number of standard yokes: 2

Standard yokes

70 × 70 × 430 mm (2.8 × 2.8 × 16.9 in.), for heating bearings with bore diameter of 100 mm (3.9 in.) and larger

40 × 40 × 430 mm (1.5 × 1.5 × 16.9 in.), for heating bearings with bore diameter of 60 mm (1.6 in.) and larger

Core cross section: 70 × 70 mm (2.8 × 2.8 in.)

Yoke storage: Yes

Sliding arm: Yes, 70 x 70 x 430 mm (2.8 x 2.8 x 16.9 in.) yoke only

Swivel arm: No

Cooling fan: No

Housing material: Steel and glass fibre filled polyamide
