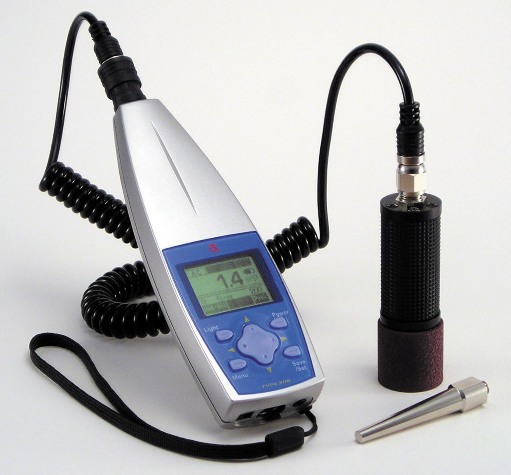

ACO 3116A 小型震动表

Measurement range
+ Acceleration(ACC) : 0.02~200m/s² RMS
+ Velocity(VEL): 0.02~200mm/s RMS
+ Displacement(DISP): 2~2000μm EQp-p
Frequency range
+ Acceleration(ACC) : 3Hz~10kHz
+ Velocity(VEL): 10Hz~1kHz(Compliant with JIS B0907-1989)
+ Displacement(DISP): 10Hz~400Hz
Measurement range
+ Acceleration(ACC): 20, 200m/s² RMS
+ Velocity(VEL): 20, 200mm/s RMS
+ Displacement(DISP): 200, 2000μm EQp-p
Display characteristics
+ Acceleration(ACC) RMS, EQ Peak, Peak
+ Velocity(VEL): RMS, EQ Peak, Peak
+ Displacement(DISP):
-- RMS, EQ Peak, EQp-p, Peak
-- EQ Peak=RMS×√2,EQp-p=EQ Peak×2
-- Dynamic characteristic (Time constant) RMS, EQ Peak, EQp-p;1s
-- Peak;50msec(rise)/3s(decay)
Liquid crystal display
+ Display LCD with backlight 128×64 dot
+ Hold: Data hold
+ Digital display: 4digets, Display Period;1s or 2s (selectable)
(Average of 10 data at 100ms, 1s or 20 data at 100ms, 2s)
+ Bar - graph: 0~100%
+ Warning(Overload) [Over] is displayed for full scale
+ Battery: 4-level residual display
+ Data memory: Max.256, 4kB
Output Terminal
+ AC on a Menu screen/Portable Headphone Change selection
+ AC Output
-- Output Voltage;1Vrms(FS)
-- Load resistance;more than 100kΩ
+ Headphone Output Vibration sound monitor by exclusive Portable Headphone With Volume function
+ Display precision: ±5%
I/O Terminal
+ Data output for PC and Direct output to printer
+ Interface: RS-232C
Operating Temperature Range
+ Temperature;-10~+50℃
+ Humidity;30%~90%(no condensing)
Battery Type and Life: 2 Alkaline dry cells type LR03 Approx.12 hours or AC adapter
Size and Weight: 145(H)×48(W)×23.5(D) Approx.130g(Include Batteries)
